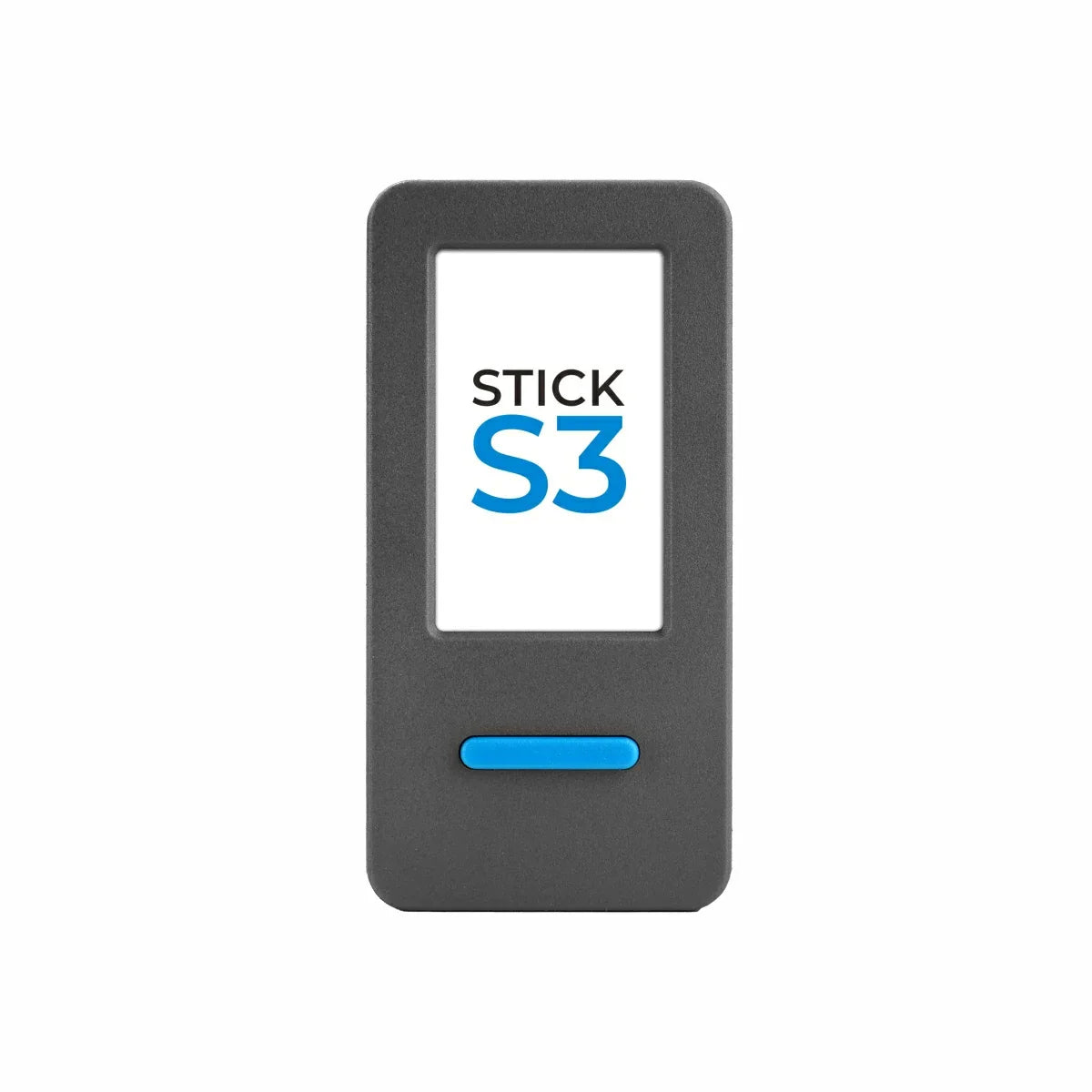

M5Stack StickS3 ESP32S3 Development Board 1.14 LCD WiFi Bluetooth for Smart Home Remote Control IoT Applications

Color
$59.95
$0.00 $59.95
Sale Sold out
Shipping calculated at checkout.

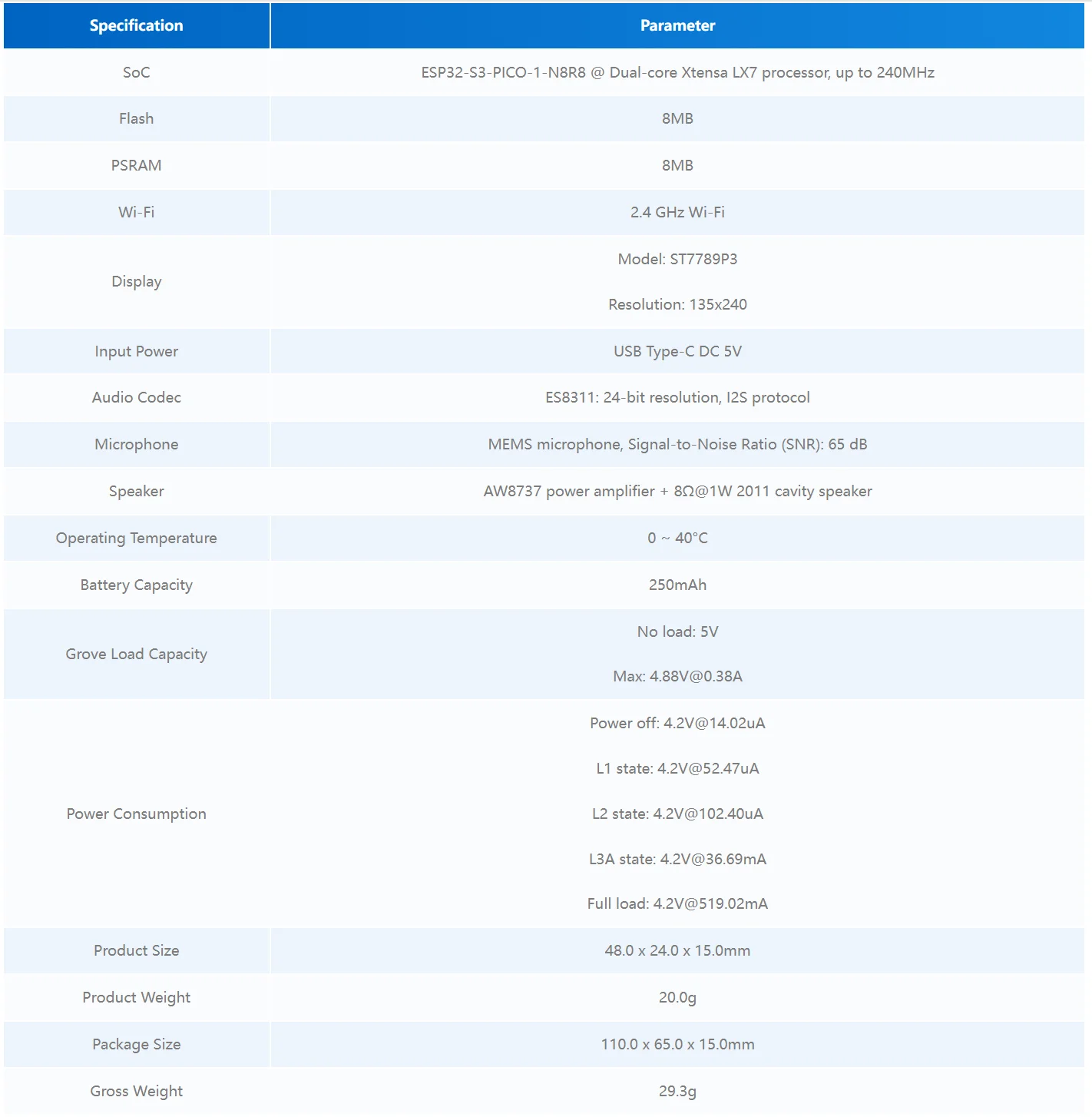

SPECIFICATIONS

Brand Name: M5Stack

Certification: CE,RoHS

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: StickS3

Origin: Mainland China

is_customized: Yes

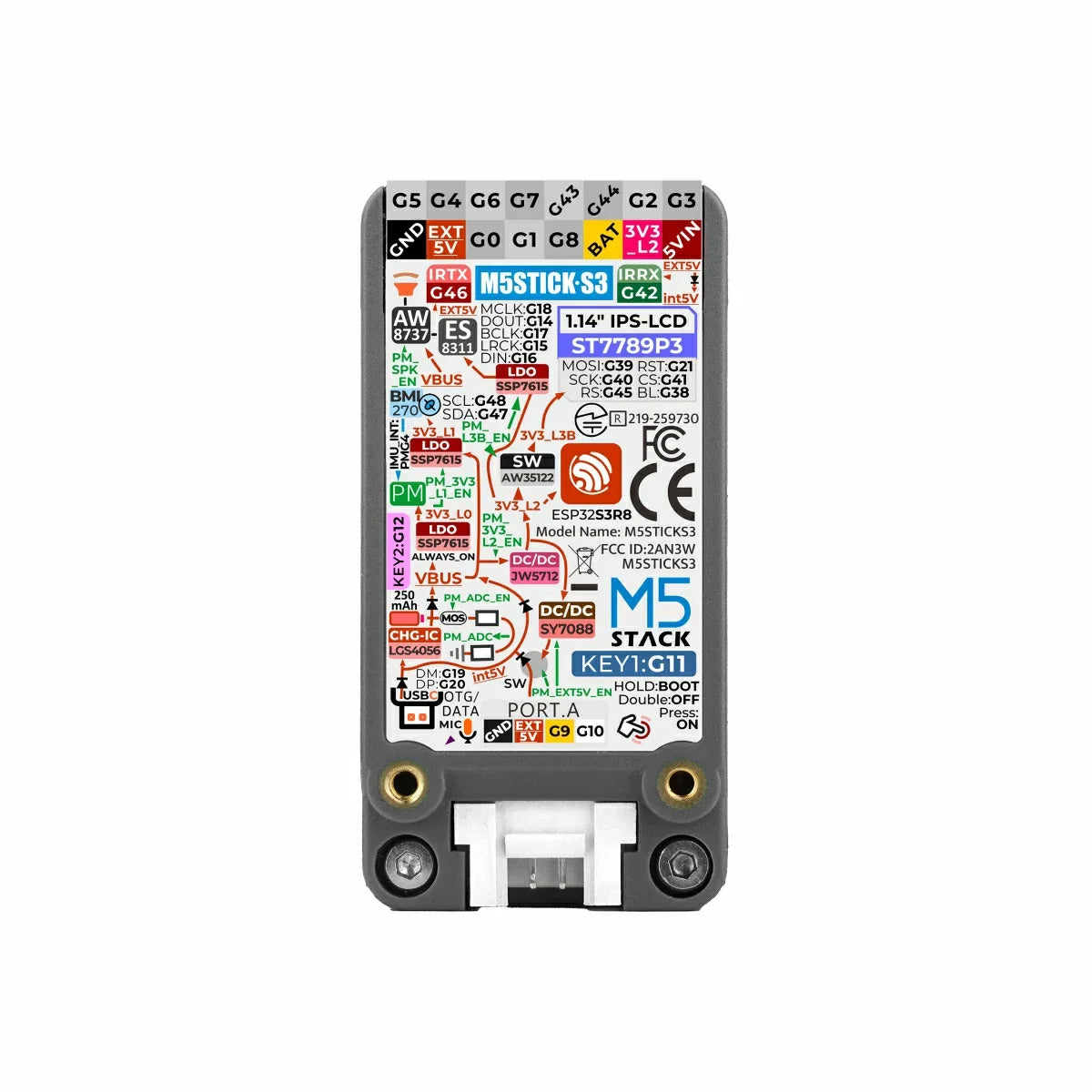

M5Stack StickS3 ESP32S3 Development Board


StickS3 is a compact and high-performance programmable controller designed for remote control and IoT applications. It is powered by the ESP32-S3-PICO-1-N8R8 main control chip, supporting 2.4 GHz Wi-Fi wireless communication, with built-in 8MB Flash and 8MB PSRAM to meet diverse application development needs, delivering excellent performance and scalability.

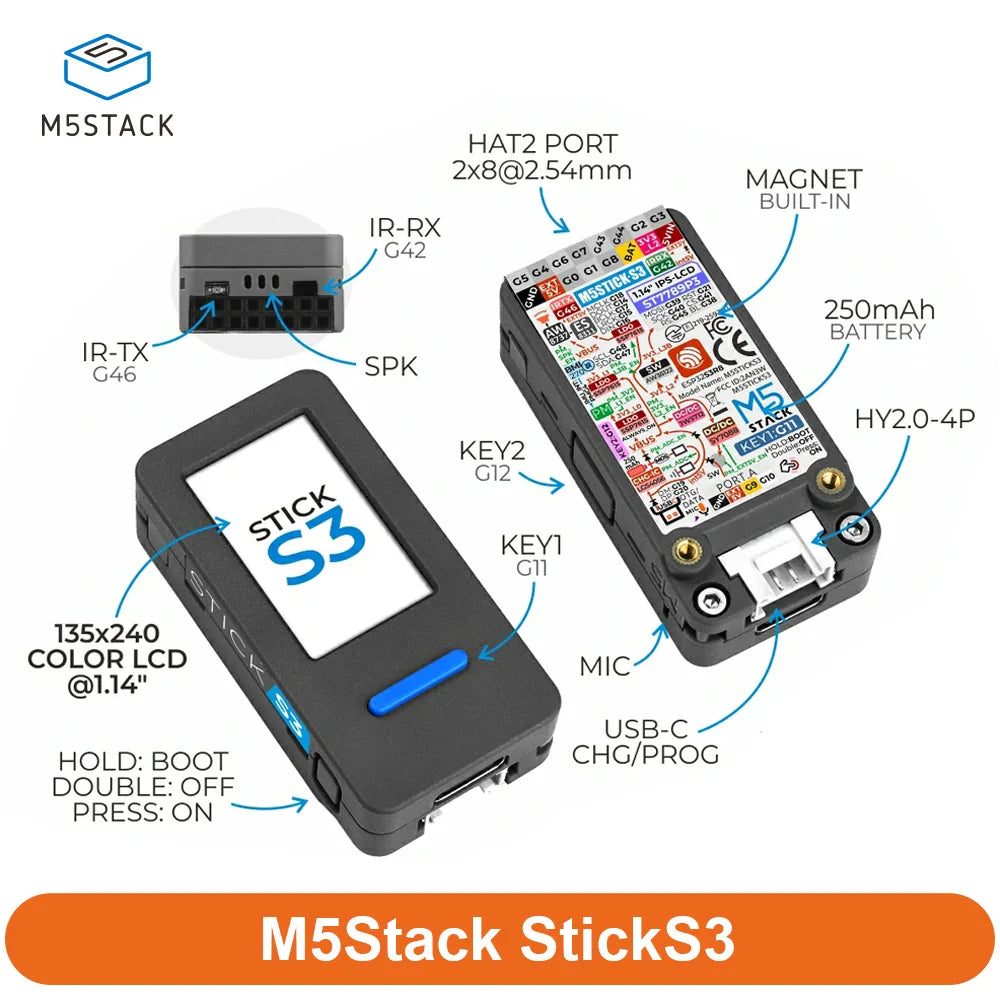

For human–machine interaction, it features a 1.14" LCD display, a 6-axis IMU sensor, and programmable buttons. The audio system adopts the ES8311 mono audio codec, combined with a high-sensitivity MEMS microphone and AW8737 power amplifier, enabling clear audio capture and high-fidelity audio output, empowering voice recognition and interactive experiences. It also integrates IR transmitter and receiver, a 250mAh lithium battery, making it suitable for smart home control, AI voice assistants, and IoT project development scenarios.

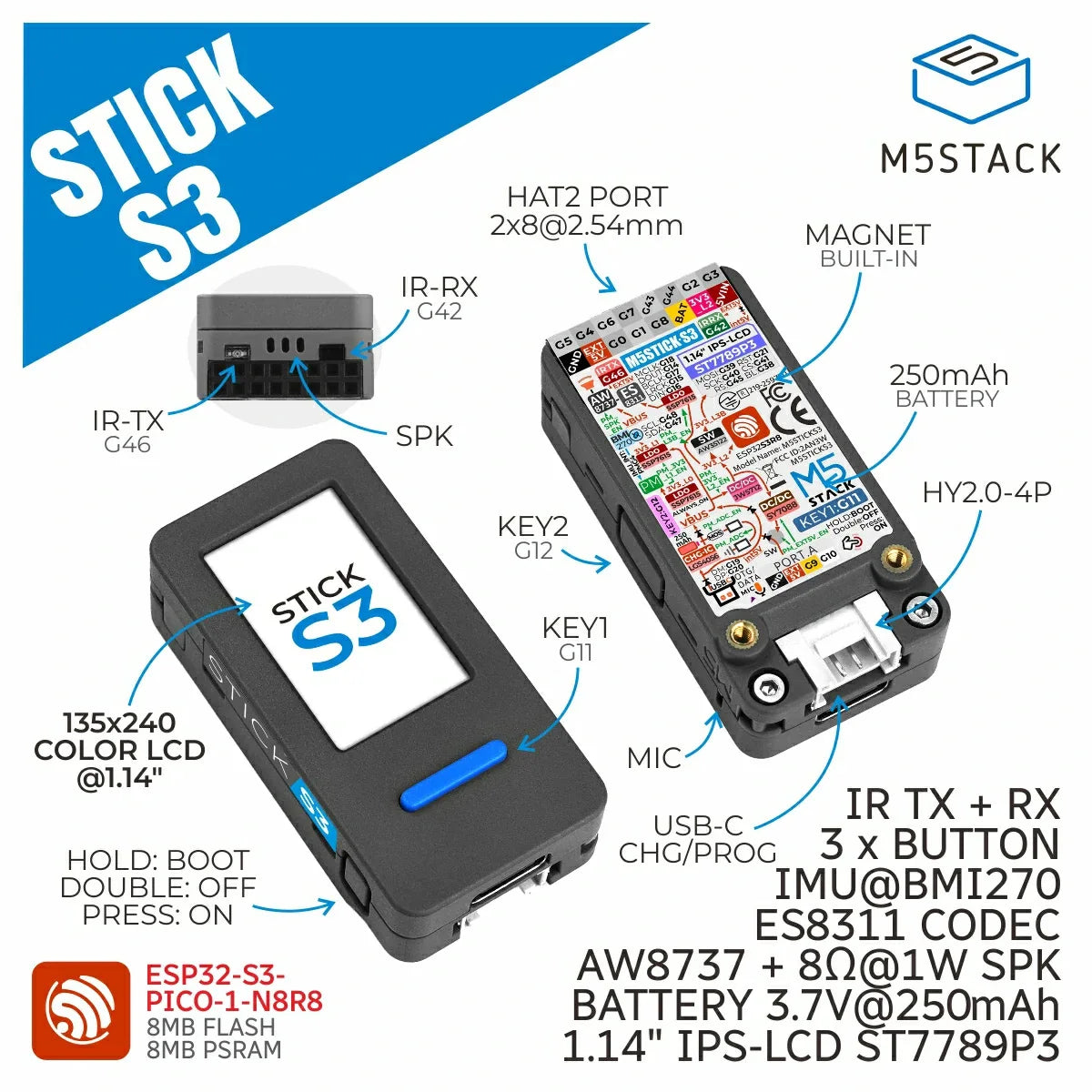

  • Integrated ESP32-S3-PICO-1-N8R8 main controller

  • 8MB Flash and 8MB PSRAM

  • ES8311 mono audio codec chip

  • MEMS microphone + speaker

  • Integrated IR transmitter + IR receiver

  • Magnetic back design

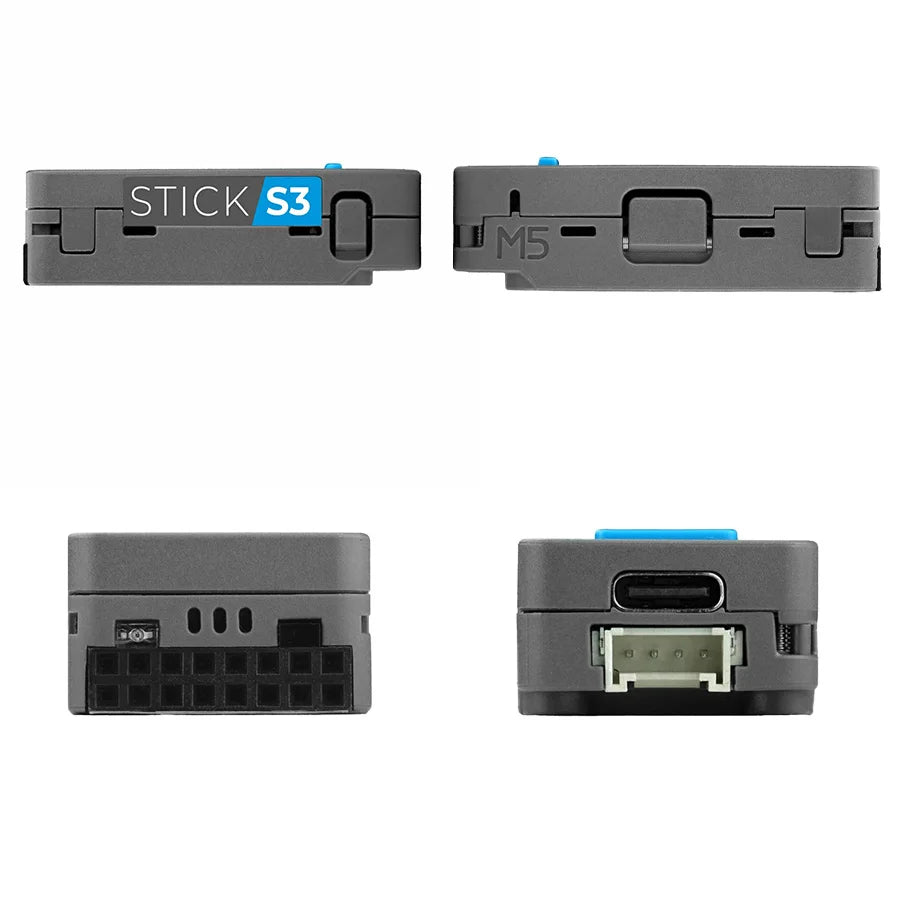

  • Expansion interfaces:

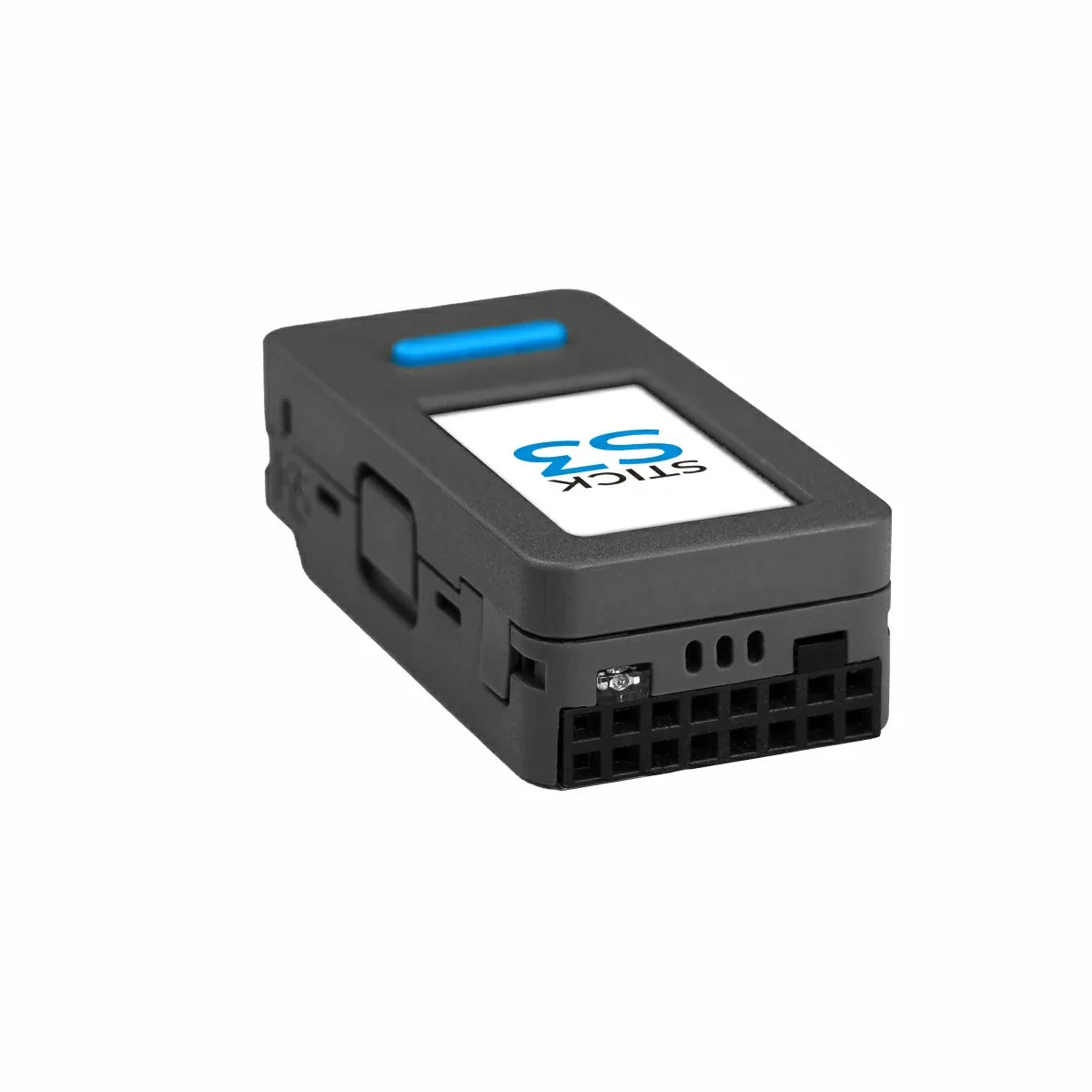

  • Expandable Hat2 bus (2.54-16P)

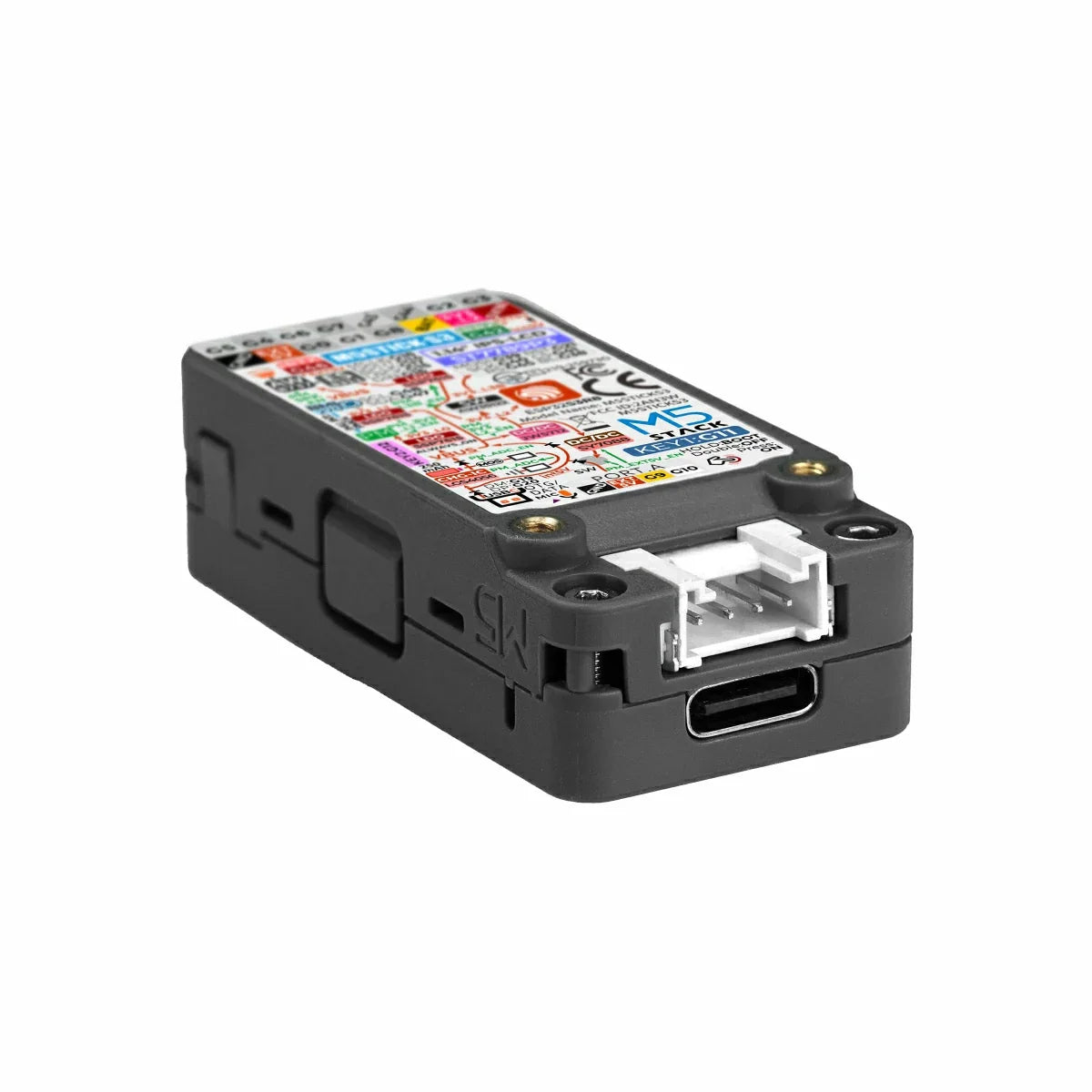

  • HY2.0-4P interface

  • Development Platform

  • Arduino

  • UiFlow2

  • ESP-IDF

  • PlatformIO

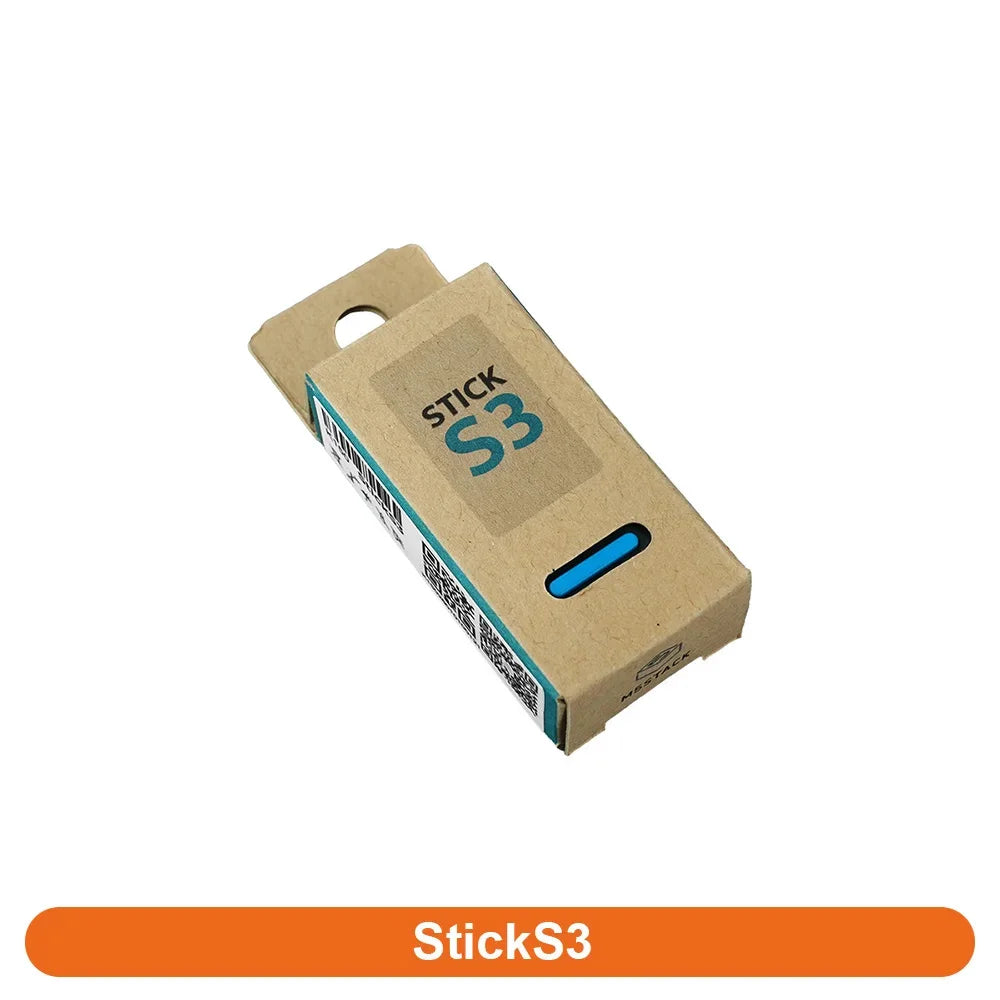

  • 1 x StickS3


  • Smart home control

  • AI voice assistant

  • IoT project development

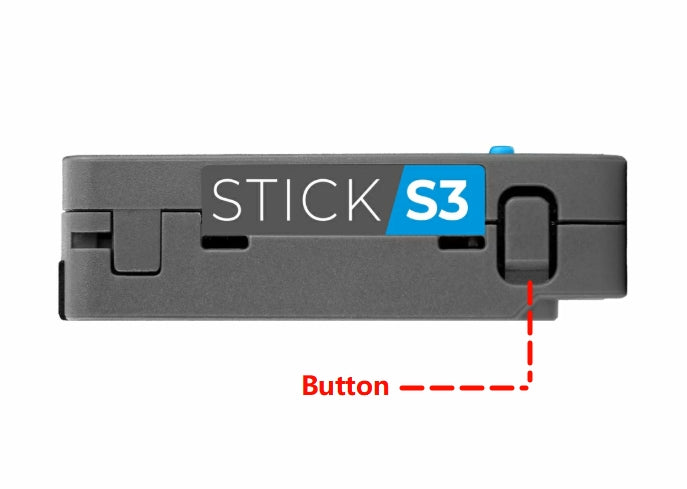

  • Long press: Enter download mode

  • Double click: Power off

  • Single click: Power on / Reset
