Specification:

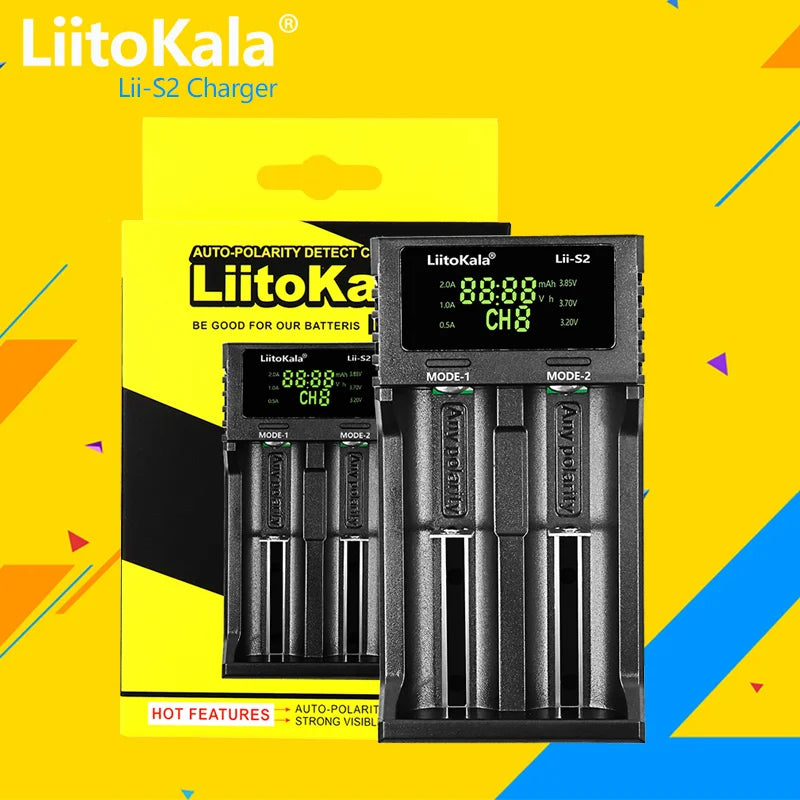

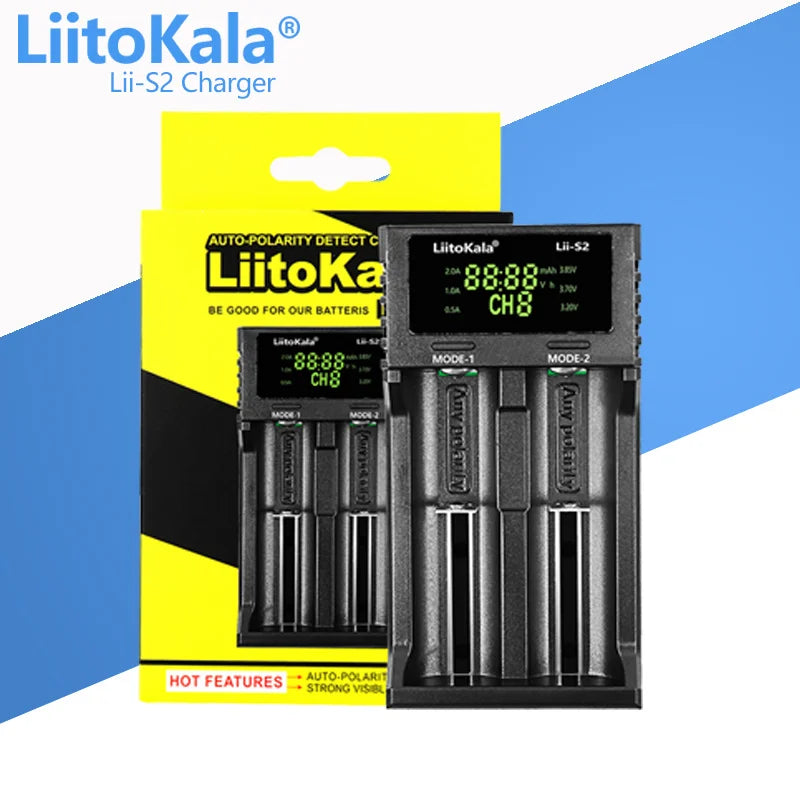

Brand Name: LiitoKala
Model Number: Lii-S2

Type: Battery Charger
Color: Black

Input Voltage: DC 5V 2A

Output:
DC 4.20V for Li-Ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.50V for NiMH/NI-Cd
Output Current(Selective):
Li-Ion/IMR/LiFePO4: 2000mA*1/1000mA*2/500mA*4
NiMH/NiCd: 500mA
Standby Current: <15mA
Compatible with:
Li-ion / IMR/LiFePO4: 26650,21700,20700, 18490, 18350, 17670, 17500, 16340(RCR123), 14500,
10440
NiMH/Cd: AA, AAA,SC,
Item Size: 11.8*6.3*2.9cm

Package Size: 15*9*3cm

PackageWeight: approx120g

Package List:

1 * LiitoKala Battery Charger
1 * USB Cable

1 * User Manual (English & Chinese)

Photo display

Specification :

1. Micro USB DC 5V input, four independent charging and micro computer management system

2. Four charging current mode (500mAh/700mAhn/1000mAh/2000mAh), 2000mAh current

mode is fixed only on the fourth slot

3. The LED indicators display the charging progress: 25% - 50% - 75% -100% and battery type (size): Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.85V

4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.85V li-ion batteries

5. Refresh for OV battery. It don`t charge any battery of1.65 -1.85V (refresh current can be detected only)

6. Protection for over-charge and over-discharge and short circuit. Identify broken battery and polar reverse inspection

7. Charing under constant voltage and current

8. Input by DC interface and working voltage is 5V-2A (Micro plug)

9. Built with 5V/1000mAh USB discharge (output) function

Function:

1. Buttons : While electricity is connected,  1) press the button to change the battery type, it will start to charge 5 seconds after setting the battery type (3.2V or 3.85V),  1.2V Ni-MH and 3.7V li-ion ca be detected automatically, so it need set for only 3.2V and 3.8V batteries;  2) change the charging current amount 4 current at any time during charging by long press the button

2. LED: While connect it to 5V input, all LED light up immediately  1) If no battery is put in, 500mAh LED keeps on and others will go out.  2) When battery is detected in, 4 LED lights on AND 3.7V LED keep flicker to indicate to set the battery type, if no operation, it begin to charge 5 seconds later automatically under detection, four LED lights will display the charging status. 3) Tap the button .can show the battery type for 5 seconds. 4) No electricity is connected, insert a battery can quick shows the remaining battery volume.

3. USB output indicator: When USB discharging port detected, indicator of battery volume will light up for 10 seconds and go out, press button to light up again.

4. LED displaying graphic reference

Note:

1. The charger can charge cylinder lithium ion batteries (3.7V and 3.8V), Ni-MH/Cd,

2. ferric phosphate lithium cell(LiFePO4)

3. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit

4. 5V USB adapter (adaptor current 2A) is recommended

5. Cation heating while charging

6. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time

7. For indoor use only

8. The displaying data for reference and refer to professional instrument for more accurate data

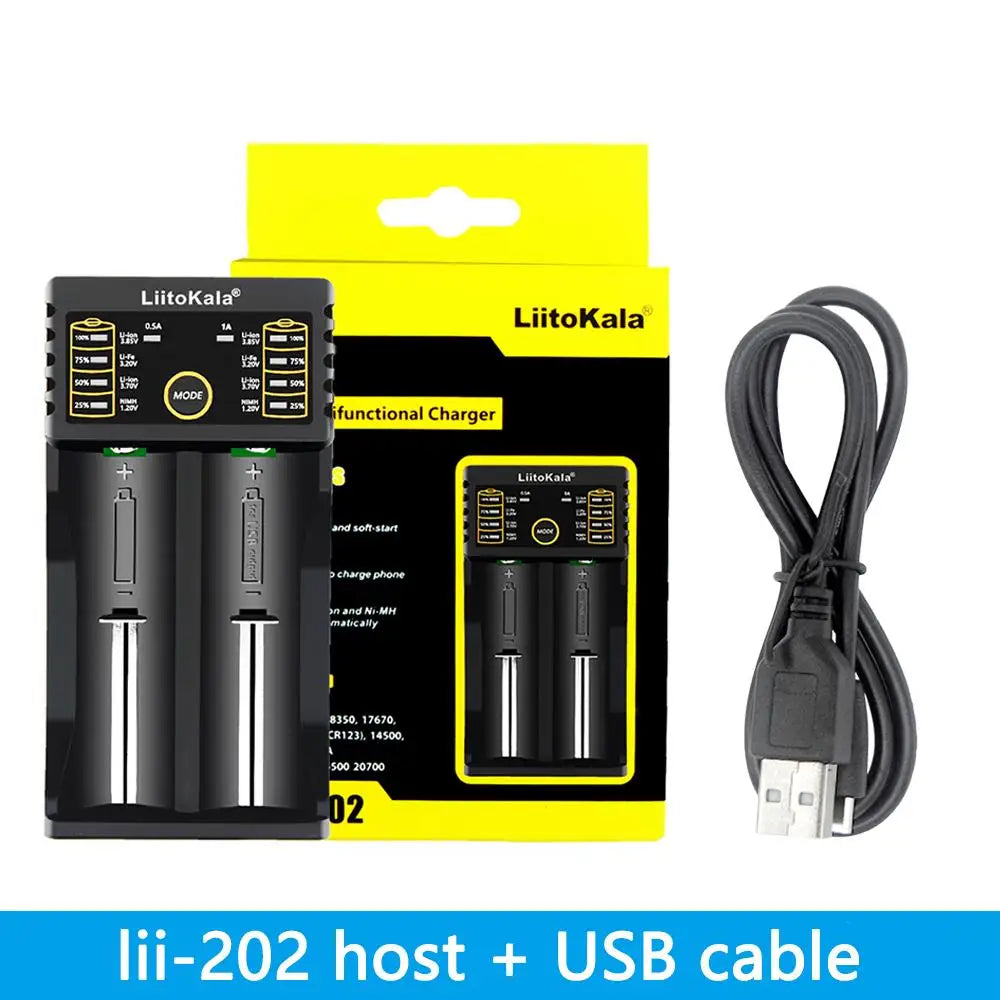

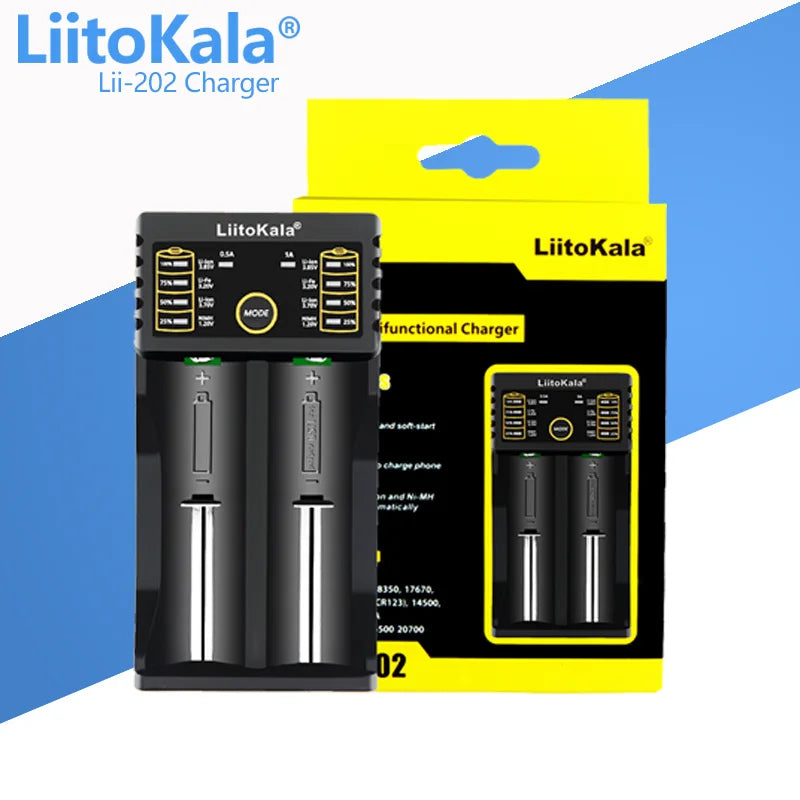

Packing list:

1*Liitokala Lii-202 charger(not includ battery)

1*Tracking no.

Photo display

Parameters:

Compatible with:
Li-ion:10440, 14500, 16340, 17355, 17500, 17670, 18490, 18650, 22650, 26500, 26650
Ni-MH and NiCd:A, AA, AAA, SC
Input voltage:DC 5V
Input current:2A
Output voltage:4.35V / 4.20V / 3.65V / 1.48V
Output current:0.5A / 1A
USB output:5V, 1A
