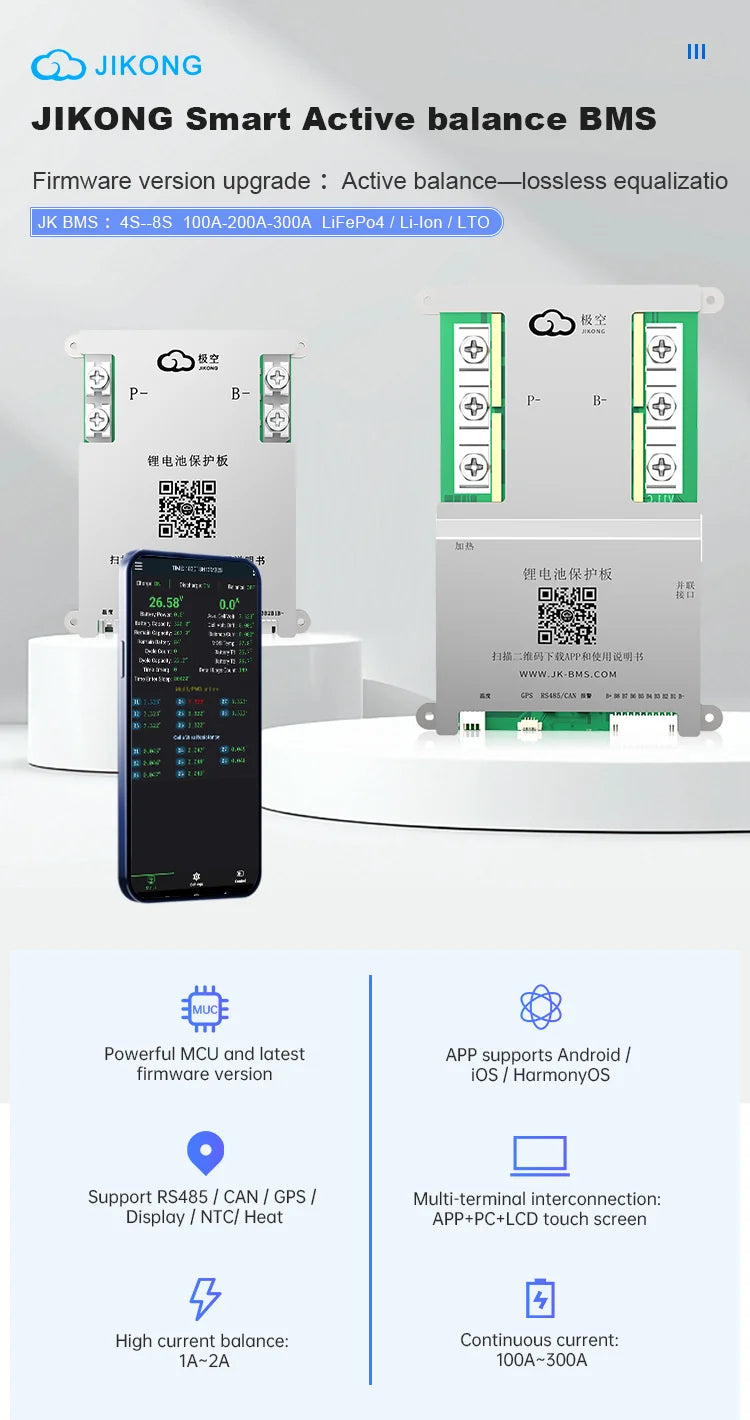

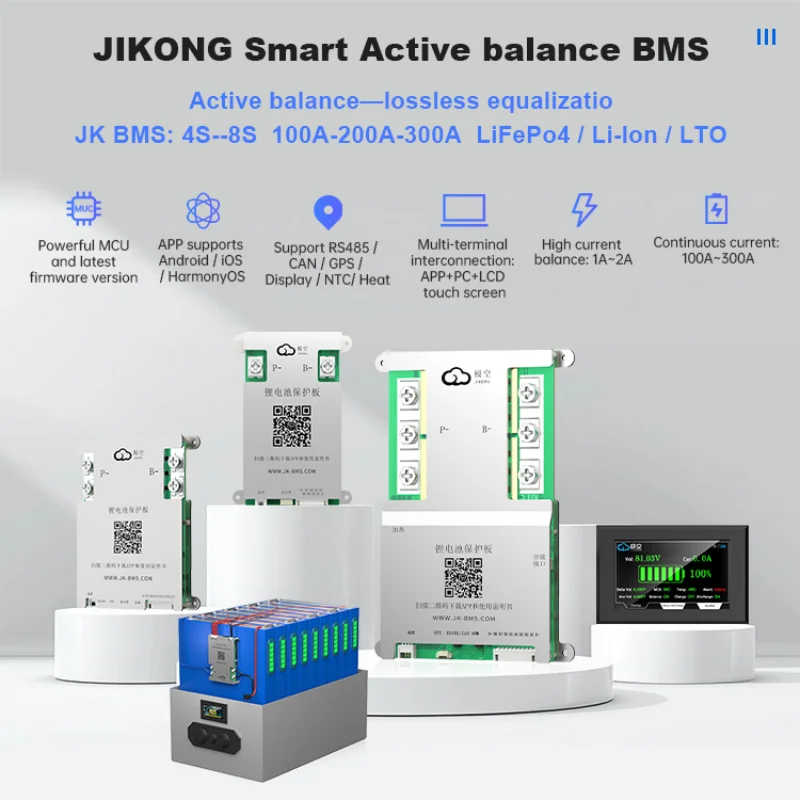

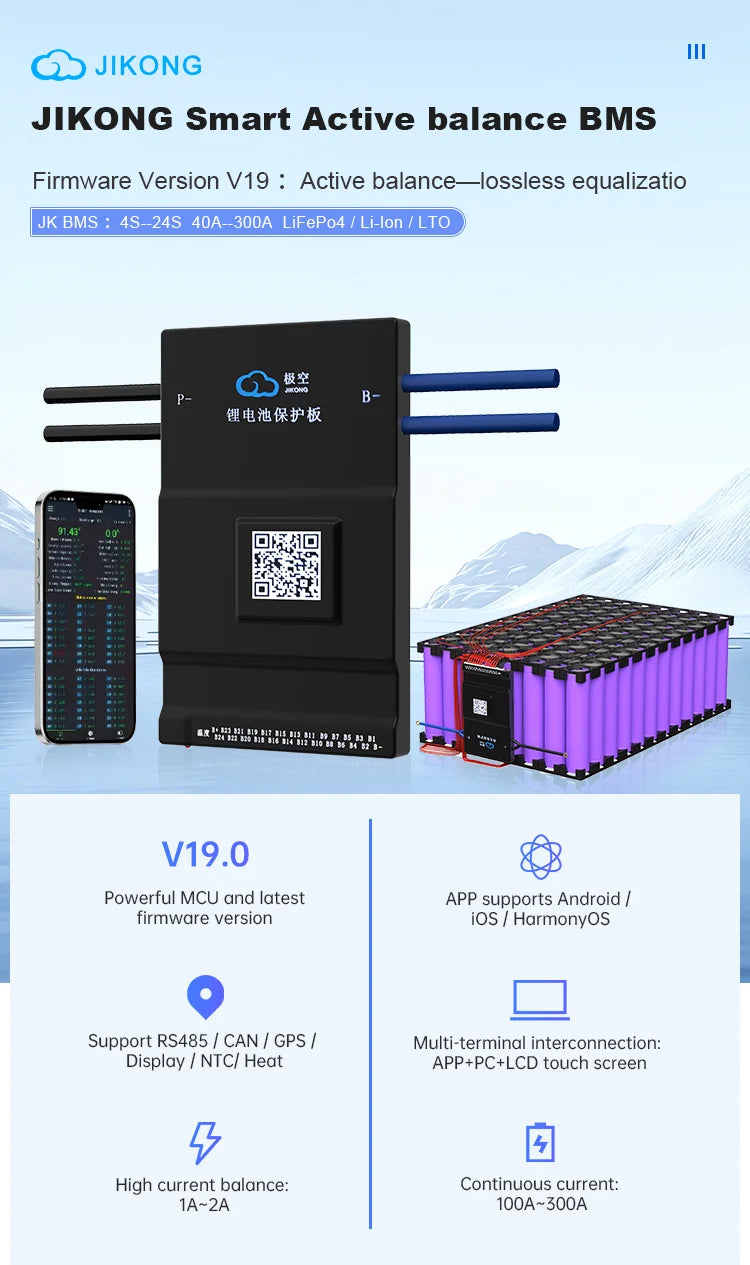

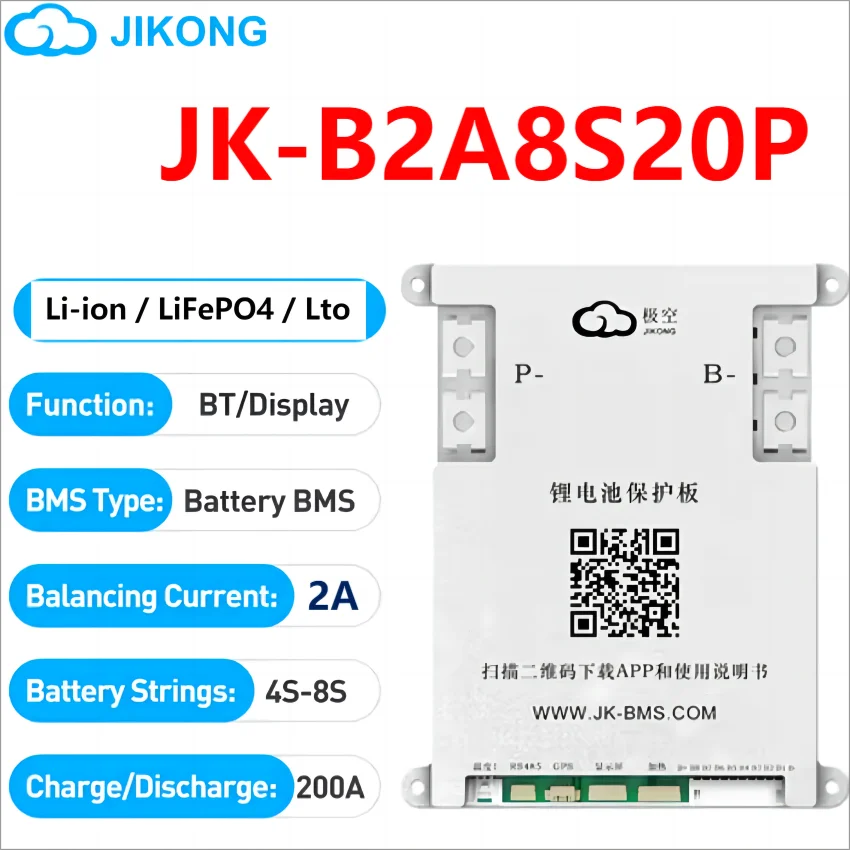

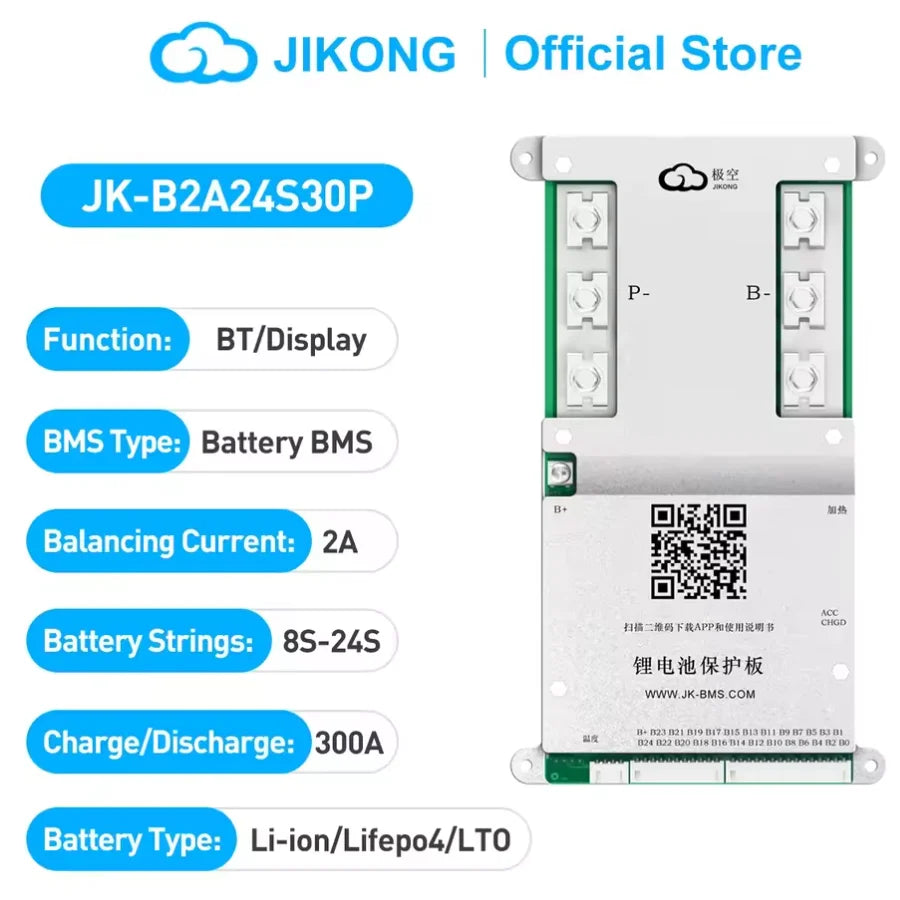

JK BMS 60A 100A 150A 200A 300A Active Balance Bms 4S 8S 16S 20S 24S JIKONG Smart Bms 12V 24V 48V 72V Lifepo4 Li-Ion Lto Battery

Color
$165.77
$0.00 $165.77
Sale Sold out
Shipping calculated at checkout.

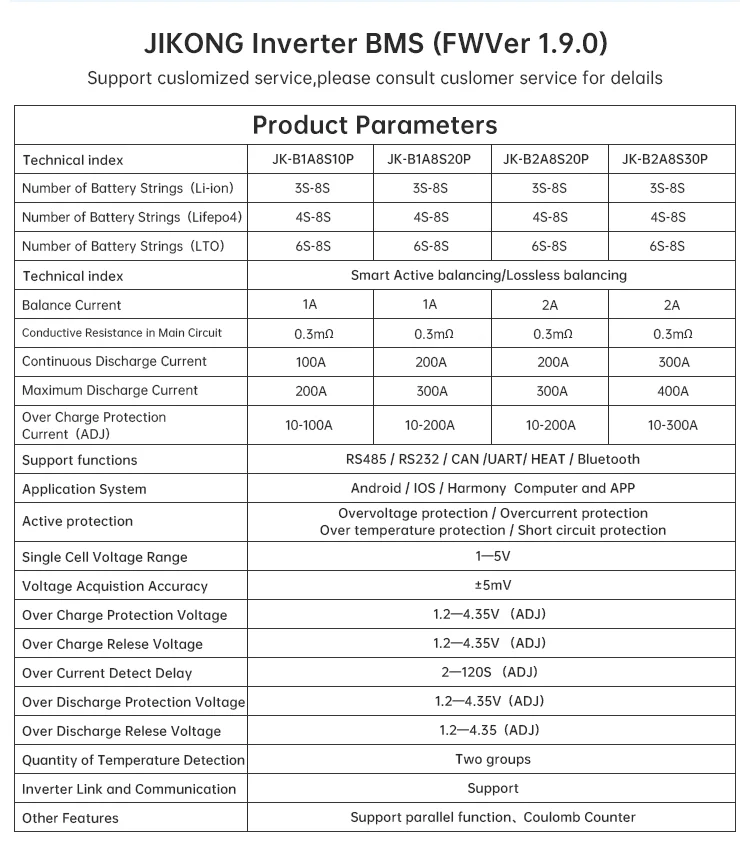

SPECIFICATIONS

Adapting system: Android or iOS Harmony

Balance Function: Active Balanced BMS

Balancing function: Active balancing BMS

Battery series: 4S-24S

Brand Name: JIKONG

Certification: CE,FCC,RoHS,UL

Charge and Discharge Port: Common Port BMS

Charging Current: 200A

Choice: yes

Function: Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection,Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

Handware or Smart: SMART BMS

High-concerned chemical: none

Origin: Mainland China

Other Features: Temperature protection/Heating Function/Support Parallel Connection

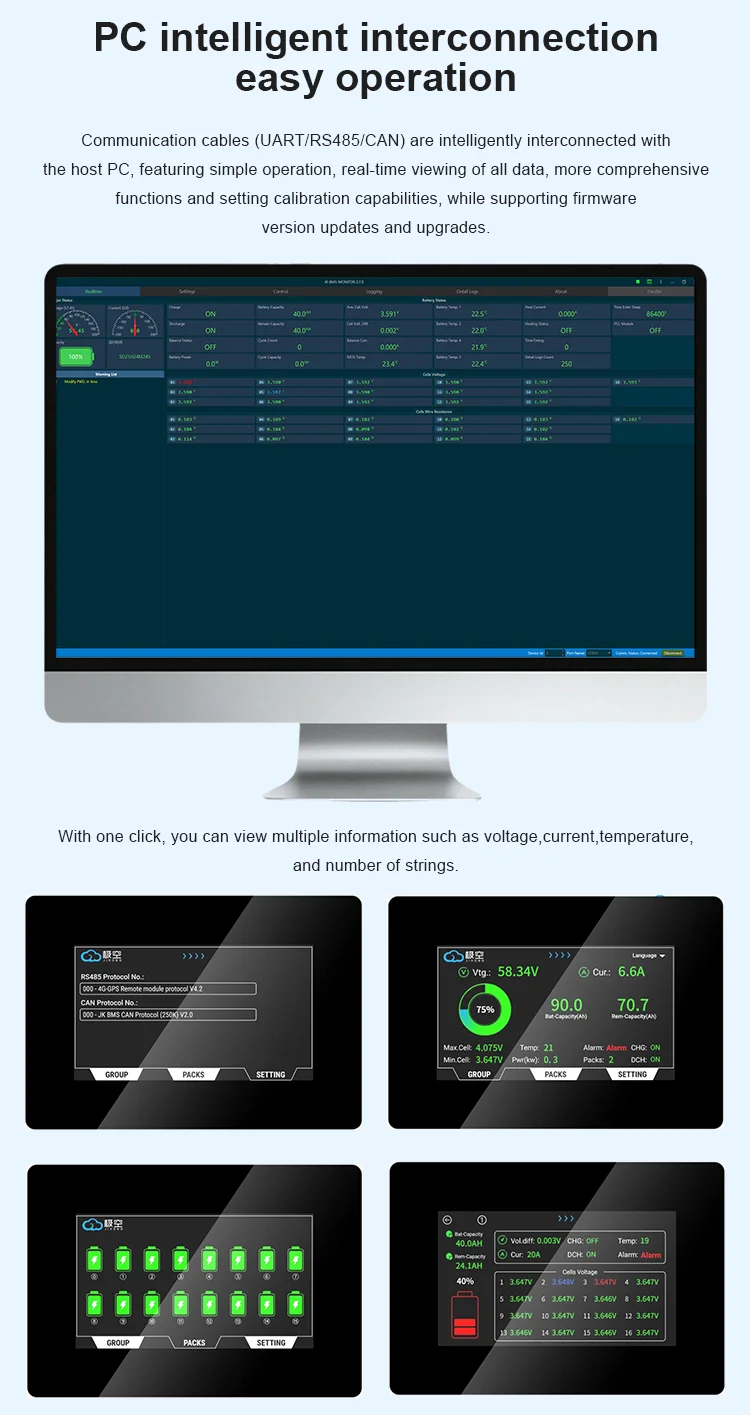

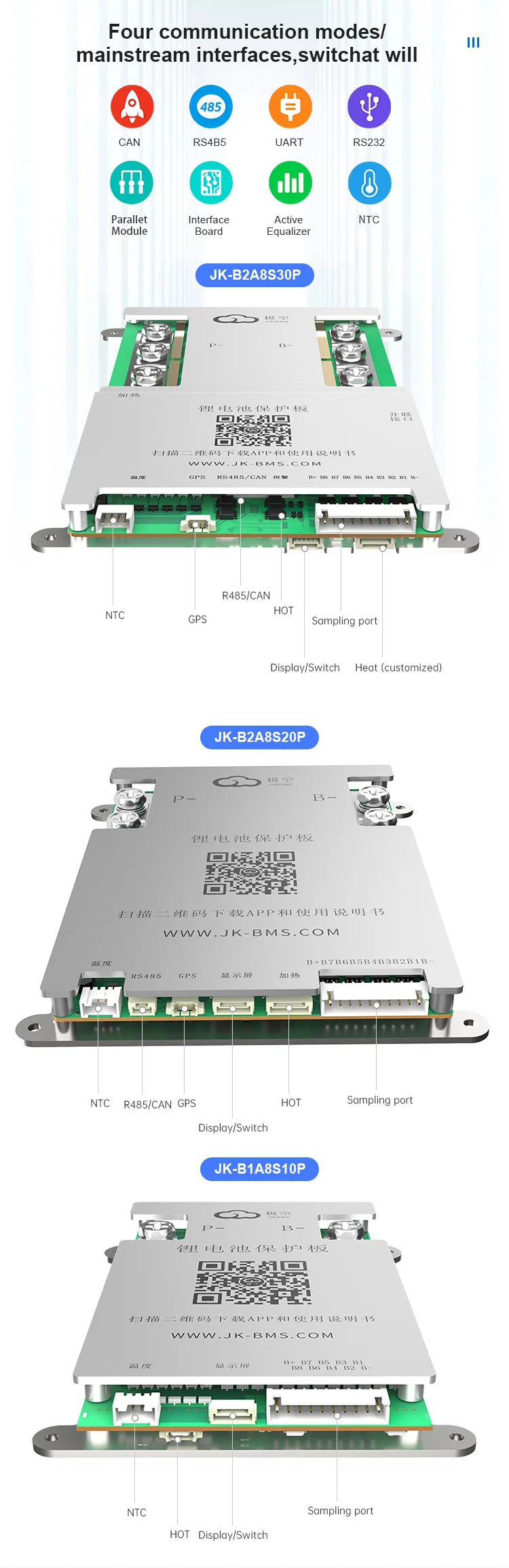

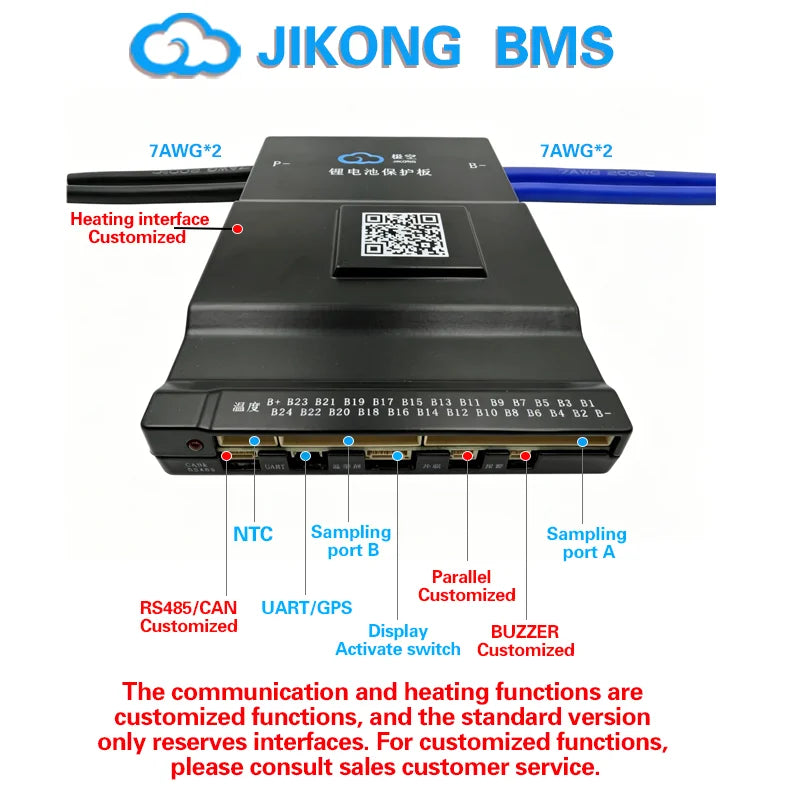

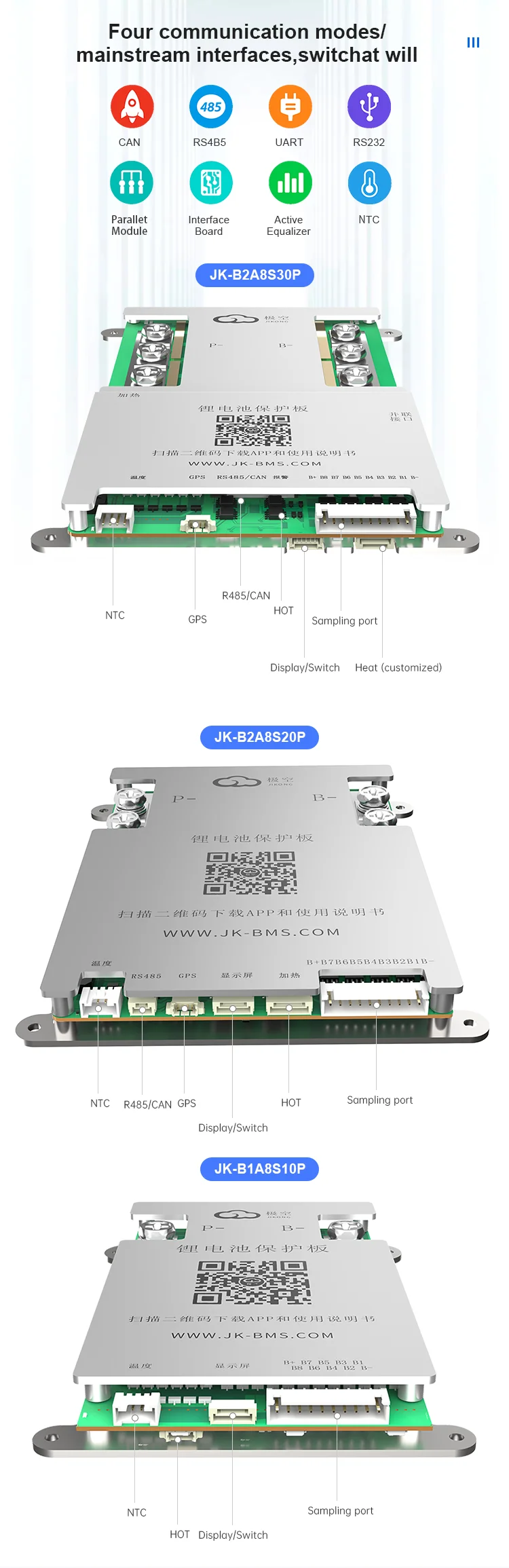

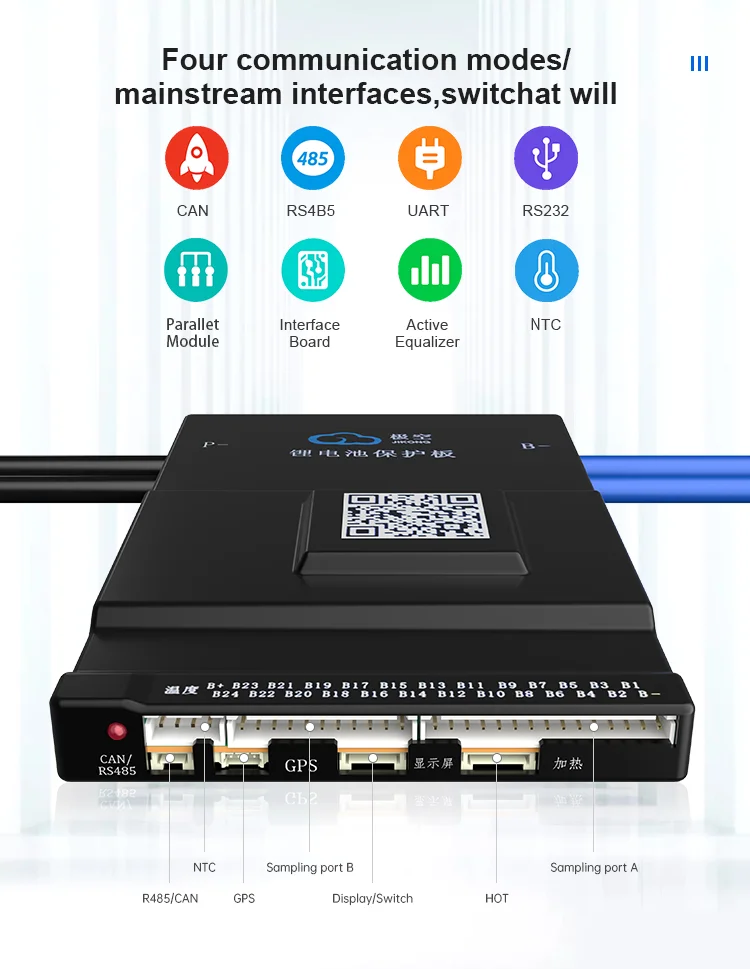

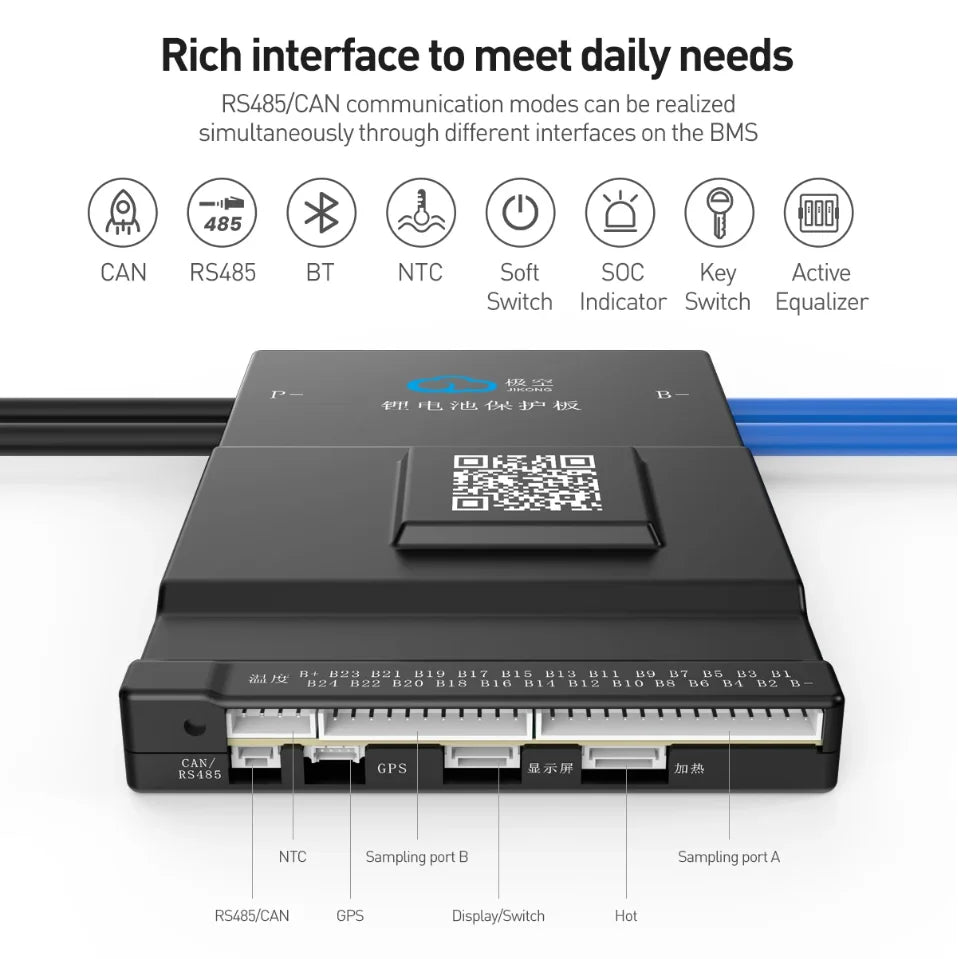

Supported interfaces: RS485/CAN/Heat/APP/BT

Type: LIFEPO4 Battery BMS,Li-ion / lifepo4 / LTO

Usage Scenario: Power BMS,Energy Storage BMS

optional categories: 40A 60A 80A 100A 150A 200A 300A Optional

semi_Choice: yes

★ Bluetooth default password 1234
★ Default password for parameter settings 123456

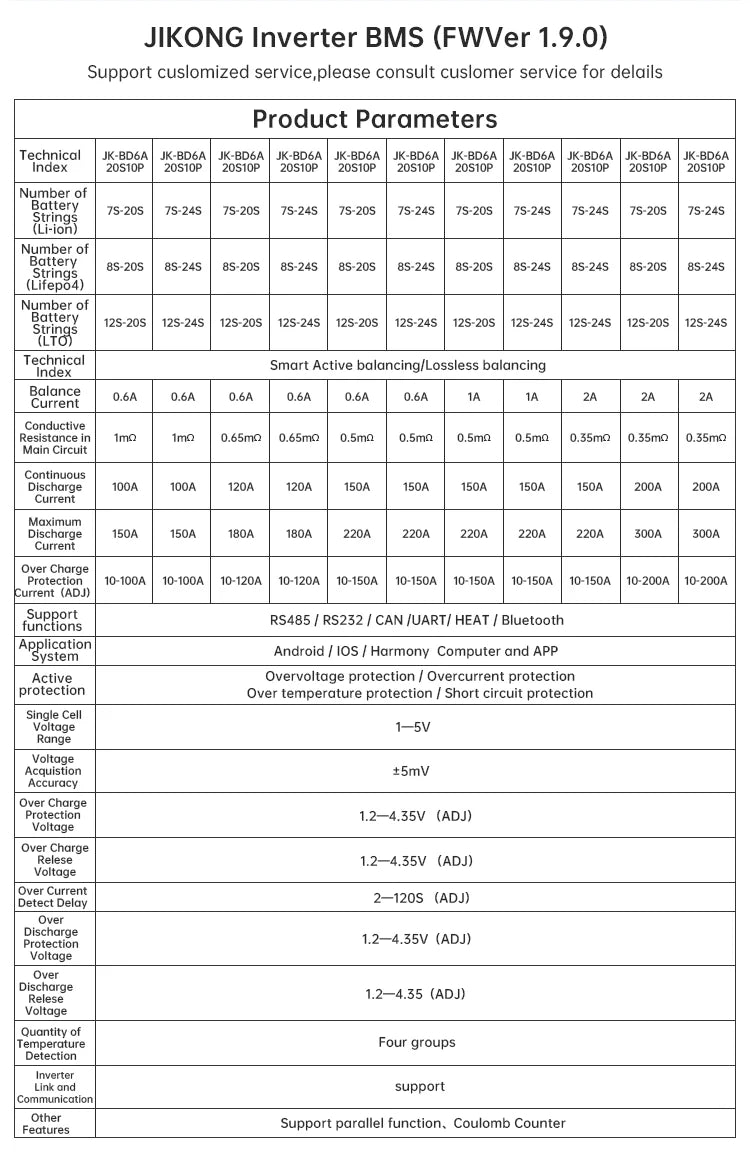

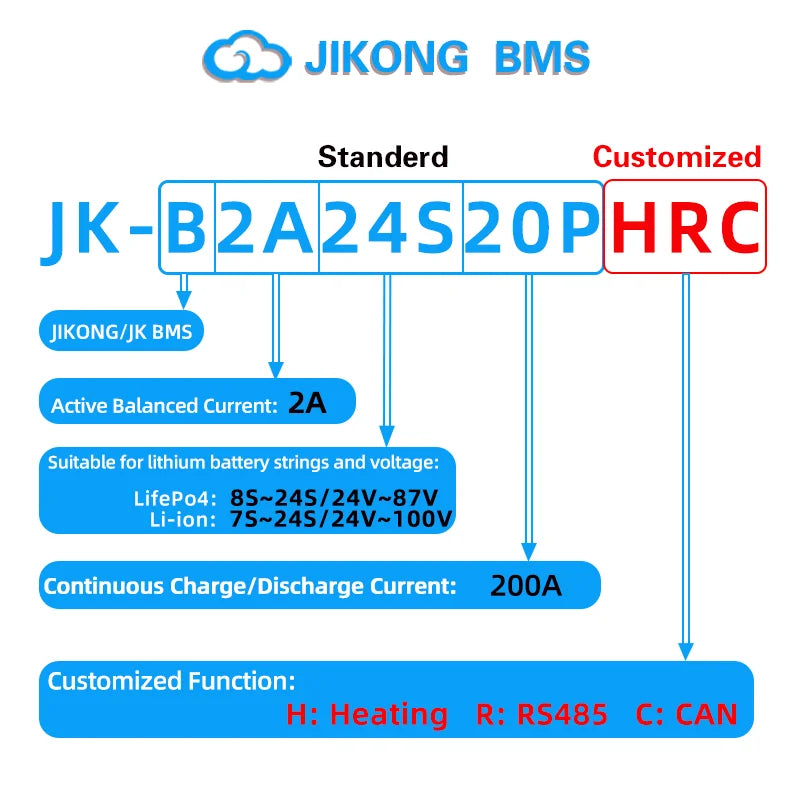

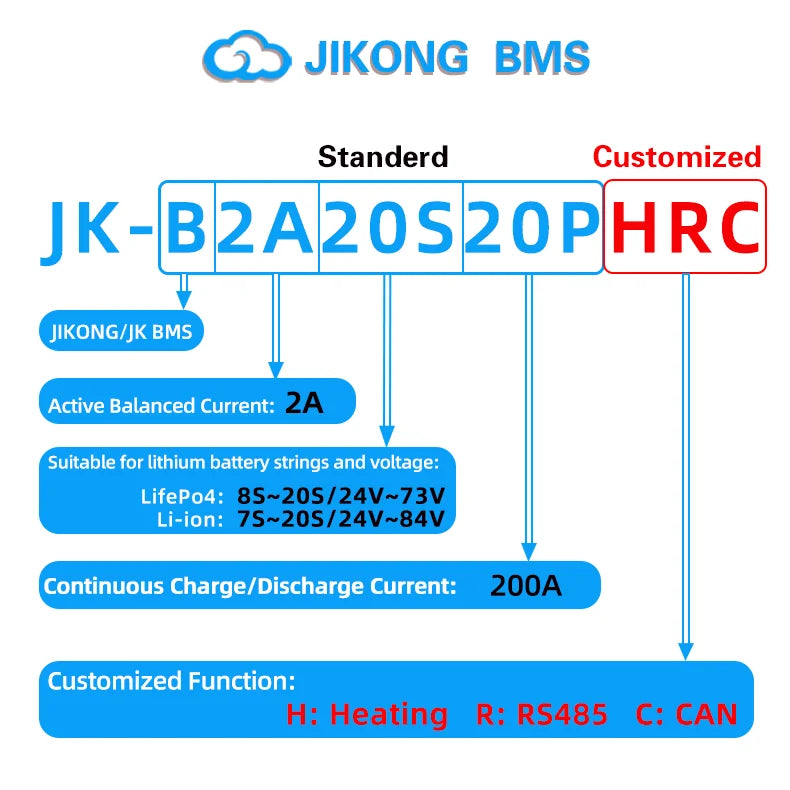

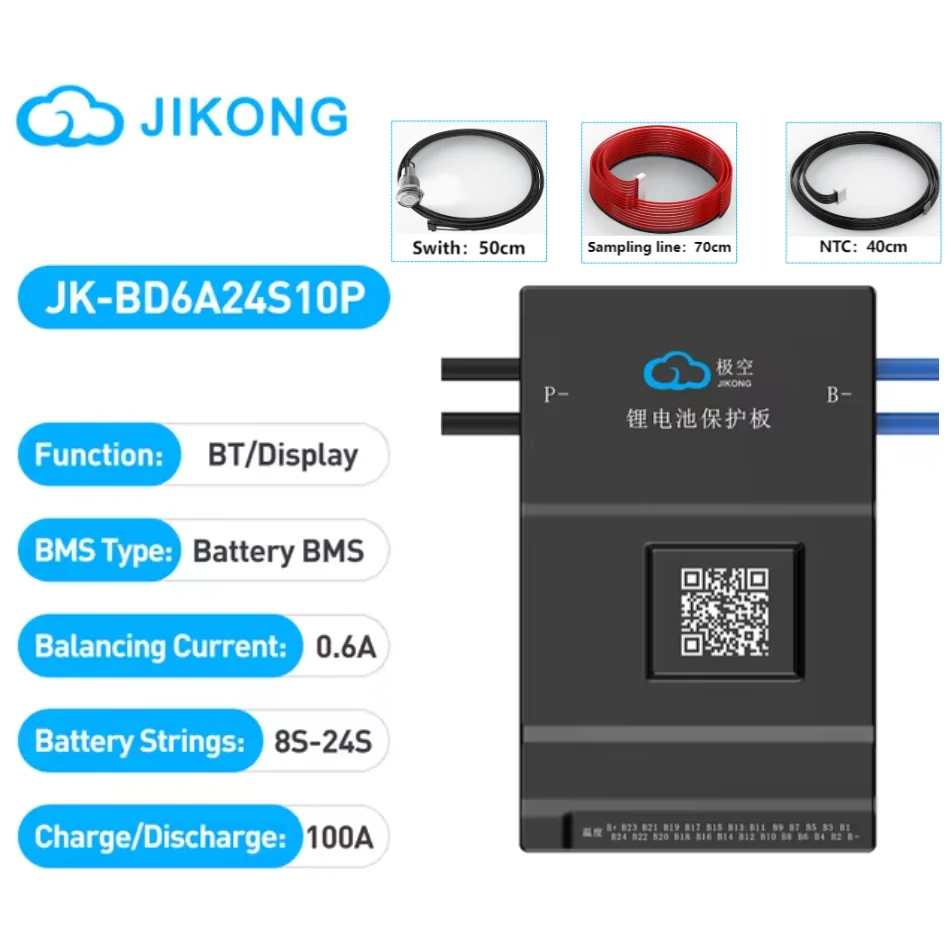

★JK-BD6A24S10P★: Active balancing current of 0.6A, supports 8-24 series lithium battery use, rated charging and discharging current of 100A,

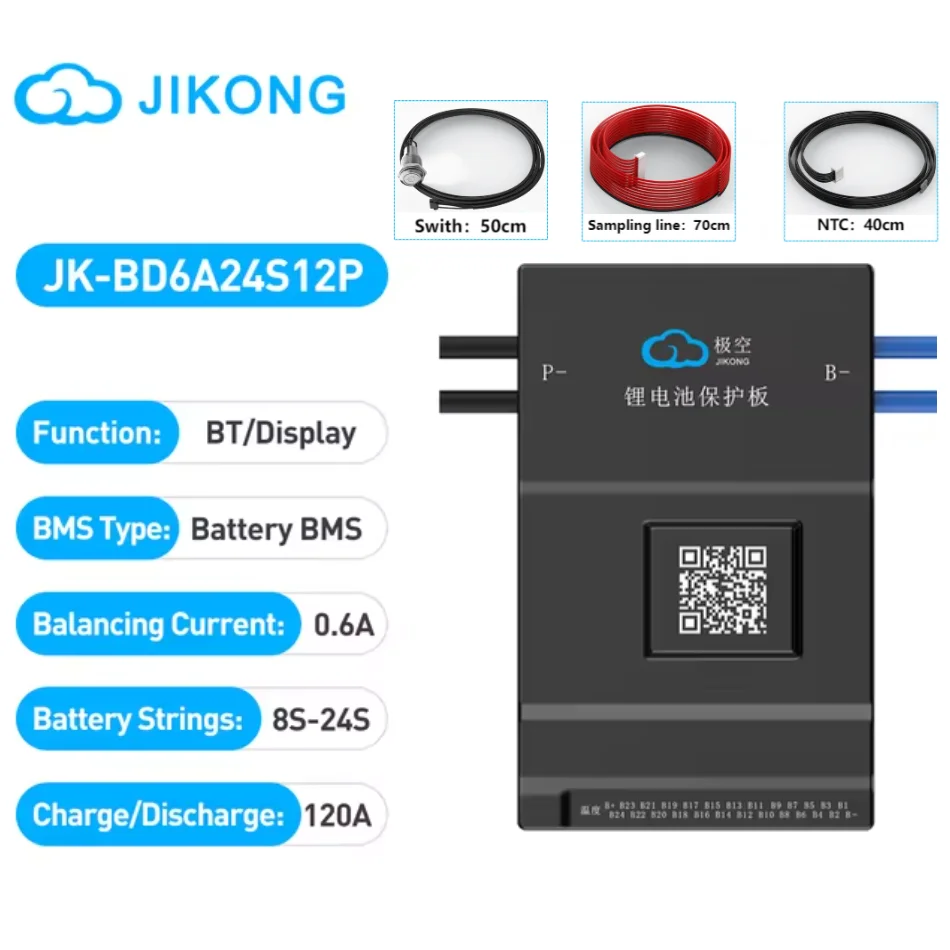

★JK-BD6A24S12P★: Active balancing current of 0.6A, supports 8-24 series lithium battery use, rated charging and discharging current of 120A,

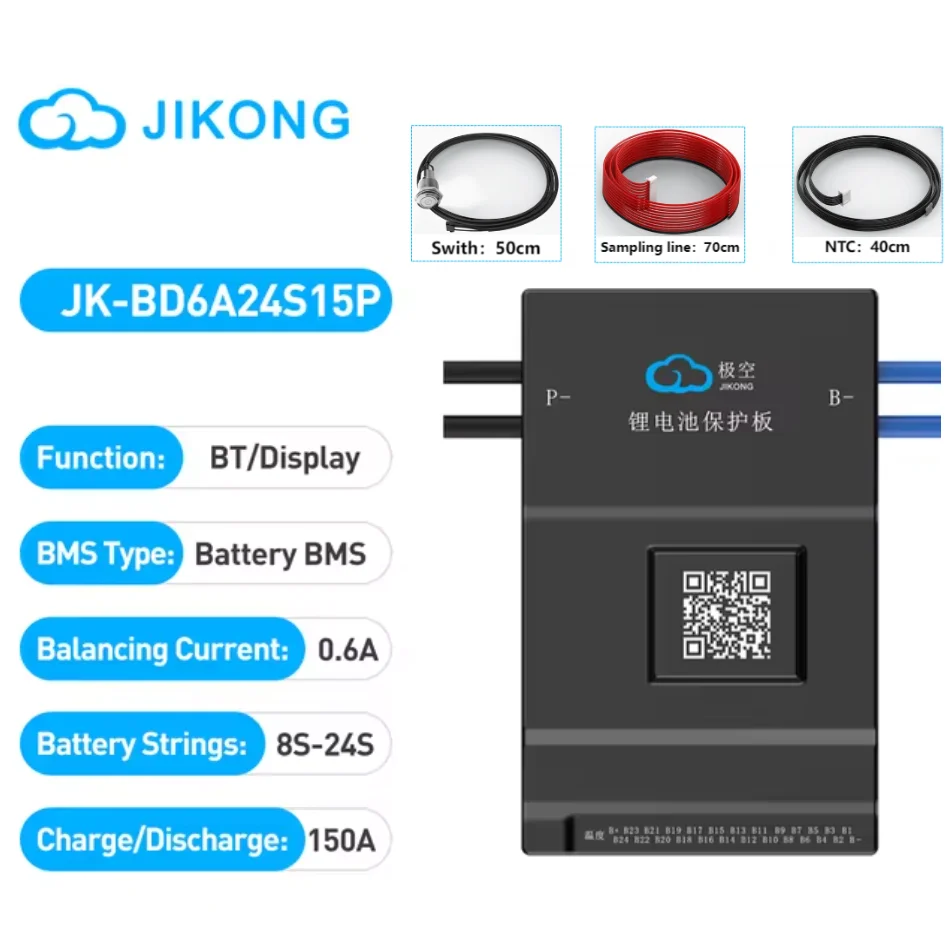

★JK-BD6A24S15P★: Active balancing current of 0.6A, supports 8-24 series lithium battery use, rated charging and discharging current of 150A,
★JK-BD6A24S20P★: Active balancing current of 0.6A, supports 8-24 series lithium battery use, rated charging and discharging current of 200A,

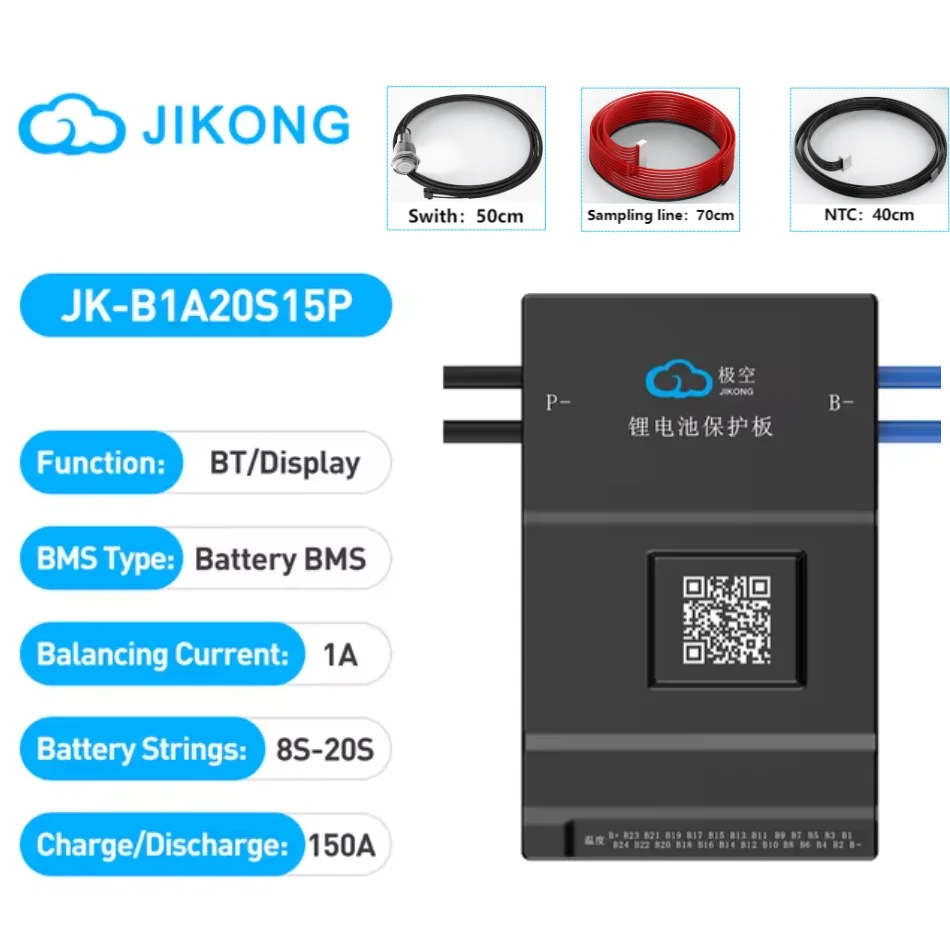

★JK-B1A20S15P★: Active balancing current of 1A, supports 8-20 series lithium battery use, rated charging and discharging current of 150A,

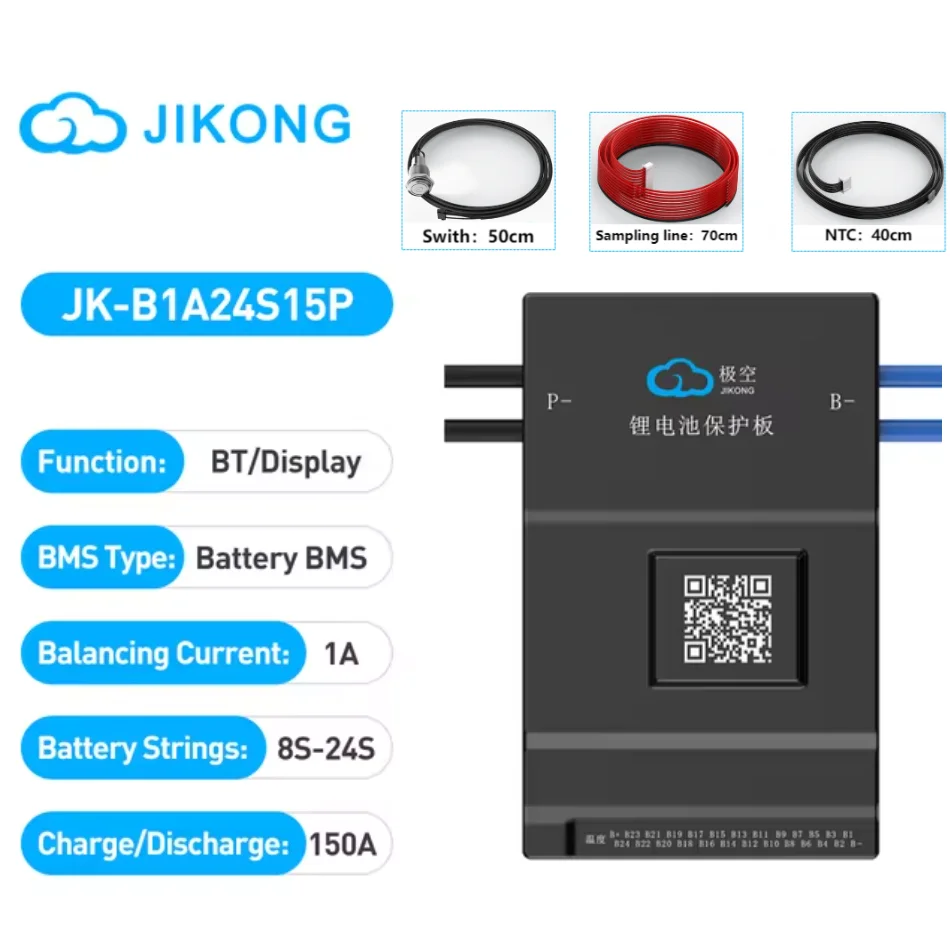

★JK-B1A24S15P★: Active balancing current of 1A, supports 8-24 series lithium battery use, rated charging and discharging current of 150A,

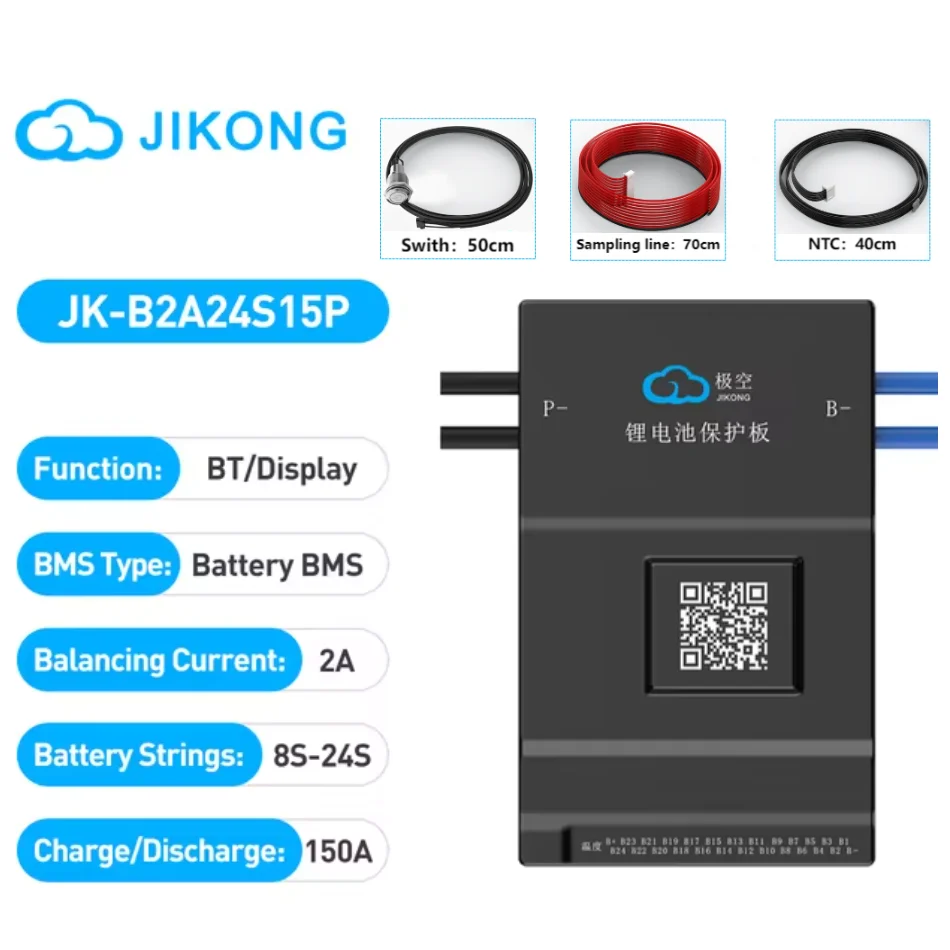

★JK-B2A24S15P★: Active balancing current of 2A, supports 8-24 series lithium battery use, rated charging and discharging current of 150A,

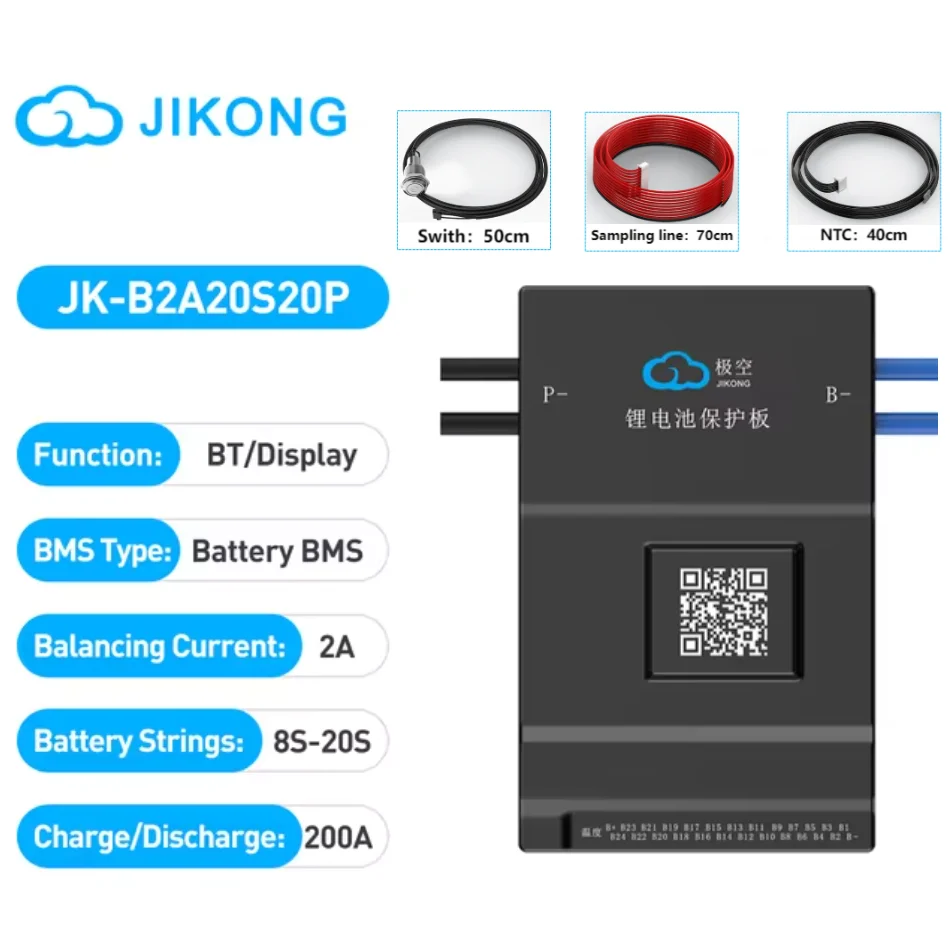

★JK-B2A20S20P★: Active balancing current of 2A, supports 8-20 series lithium battery use, rated charging and discharging current of 200A,

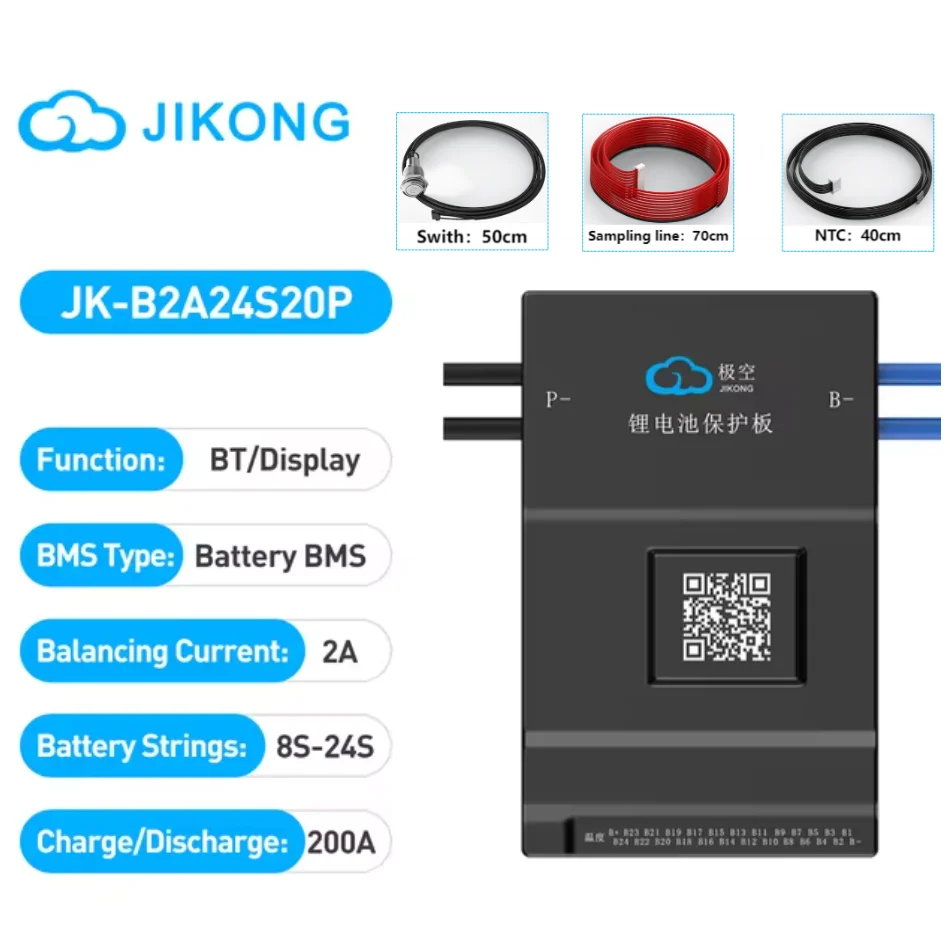

★JK-B2A24S20P★: Active balancing current of 2A, supports 8-24 series lithium battery use, rated charging and discharging current of 200A,

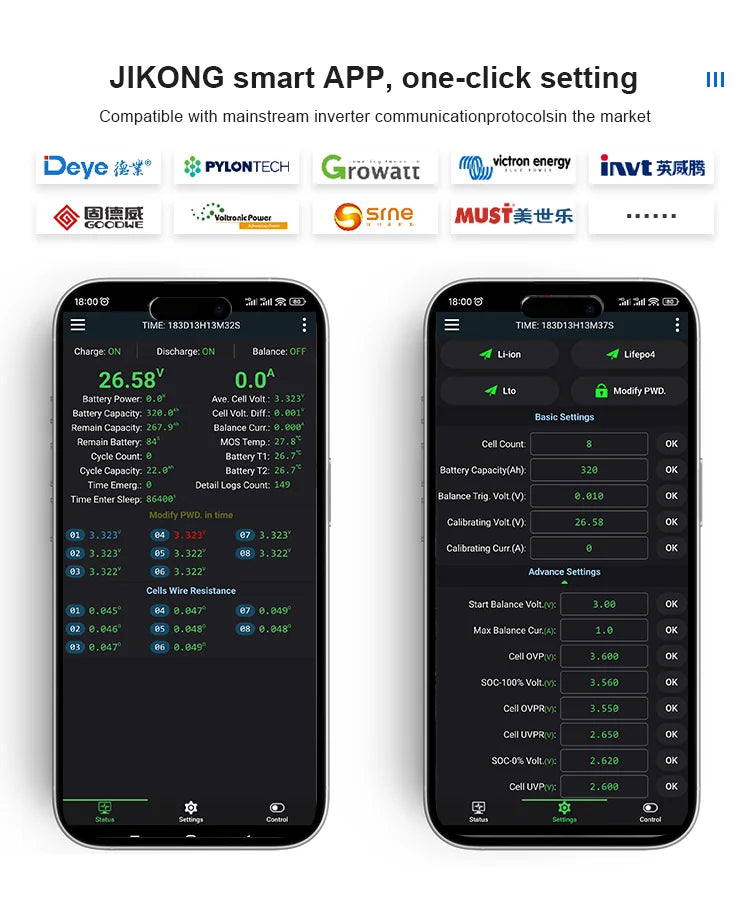

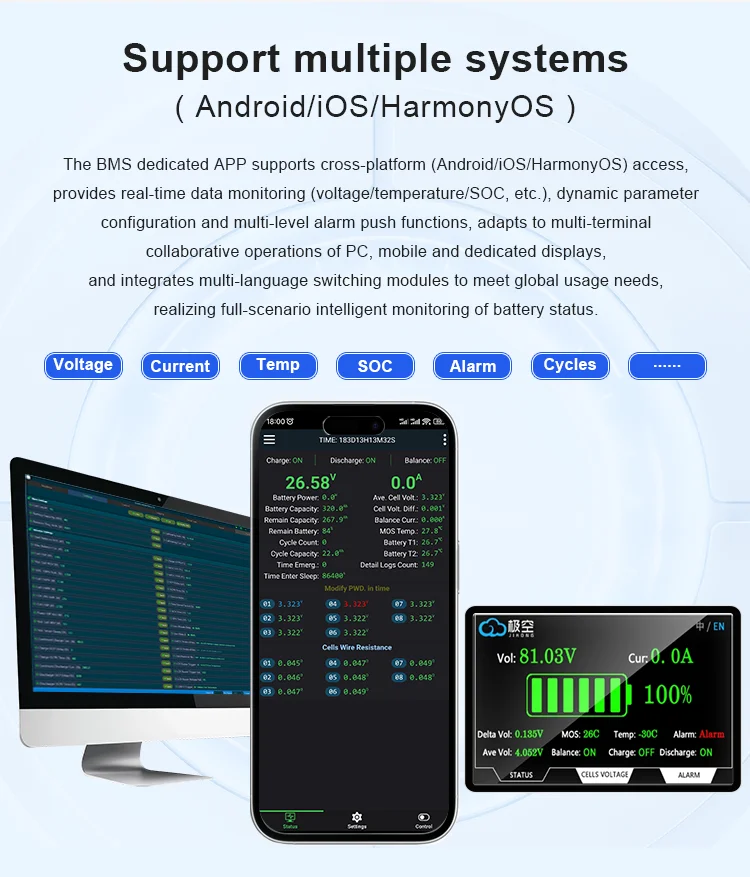

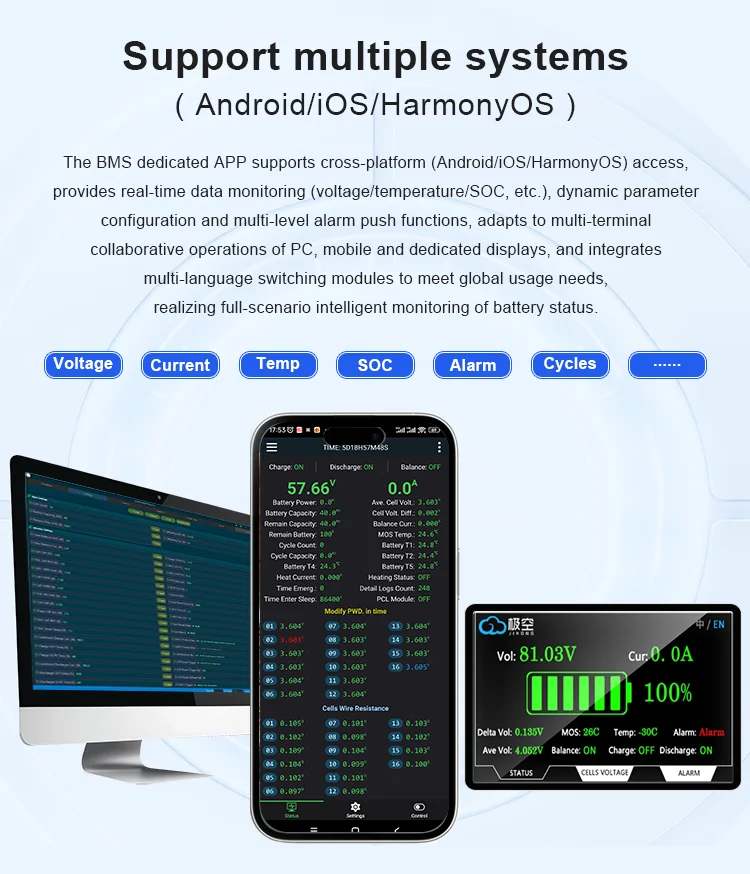

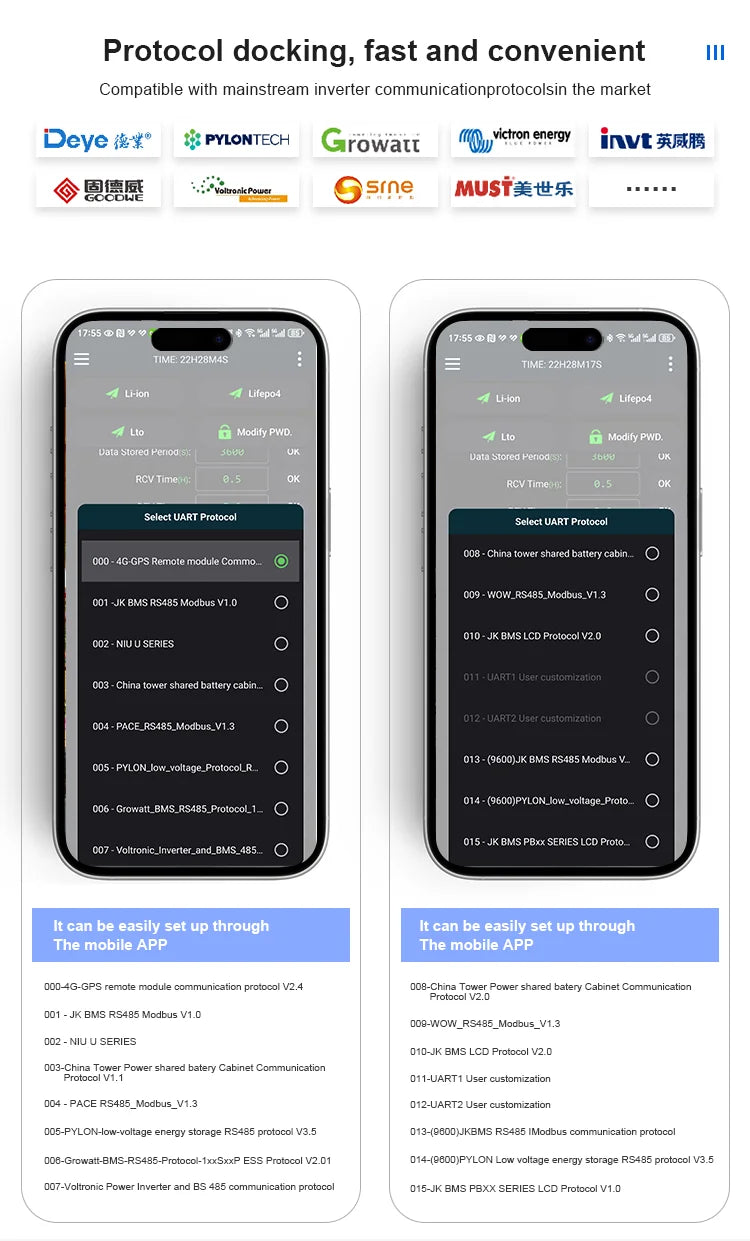

JIKONGBMS is equipped with a Bluetooth APP, which can provide customized services such as heating function, RS485 communication, CAN communication, etc.
