SPECIFICATIONS

10S-17S SP17S005 Size: 102*65*12mm

7S-14S SP14S004 Size: 63*52*12mm

7S-17S Smart Bluetooth BMS: Lithium Battery Protection Board

APP for Android&IOS: xiaoxiangElectric

Accessory Type: Battery Accessories

Applicable Battery Type: 3.2v Lifepo4/3.7v Li-ion

Application Field: E-Bike,Electric Motorcycle,Electric Scooter;

BMS Function: Lithium Battery Balance Protection

BMS Type: Smart BMS

BT Function: Built-in BT

Balance Function: Yes

Battery Included: no

Brand Name: JBDBMS

Certification: CE,RoHS

Charger included: N

Choice: yes

Communication Function: UART

Continuous Current: 20A-120A

Electronic: no

High-concerned chemical: none

Model Number: Smart BMS

Origin: Mainland China

PCBincluded: Yes

Reusability: Reusable

SP14S004 NTC: 1pc Internal,1pc External

SP17S005 NTC: 1pc Internal,2pcs External

Six Protection Functions: Yes

Voltage: 24V-60V

Voltage range: No voltage

semi_Choice: yes

High Compatibility

Supports a wide range of lithium batteries, including Li-ion and Lipo, ensuring broad applicability.

Certified Safety

Comes with CE certification, guaranteeing safety and quality standards are met.

Durable Material

Constructed with high-quality materials, ensuring durability and longevity.

Versatile Voltage Range

Available in various voltage options from 24V to 60V, catering to diverse battery needs.

Easy Installation

Designed for easy installation, making it a convenient choice for battery protection.

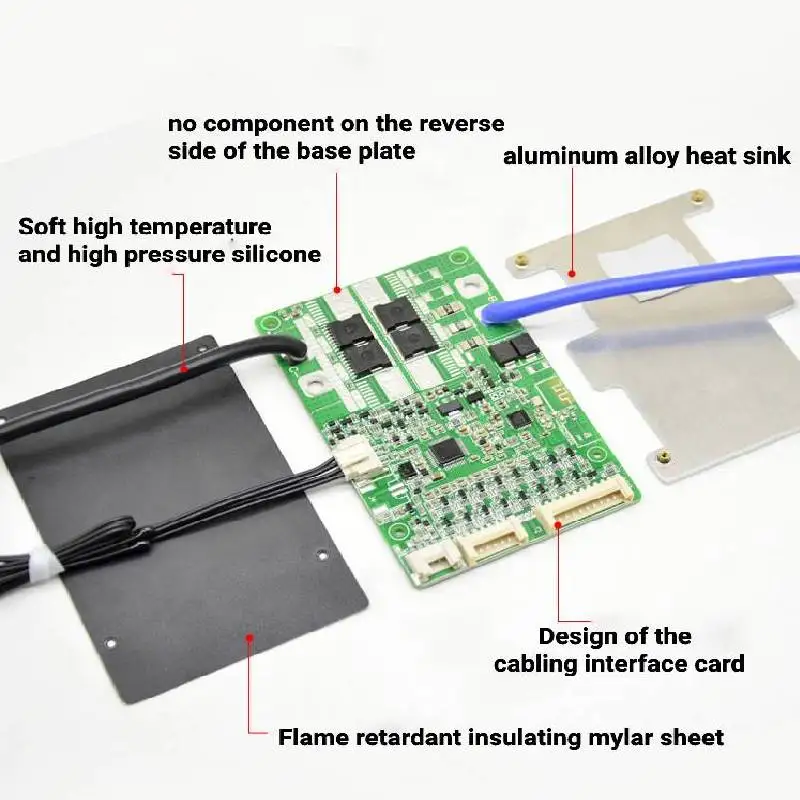

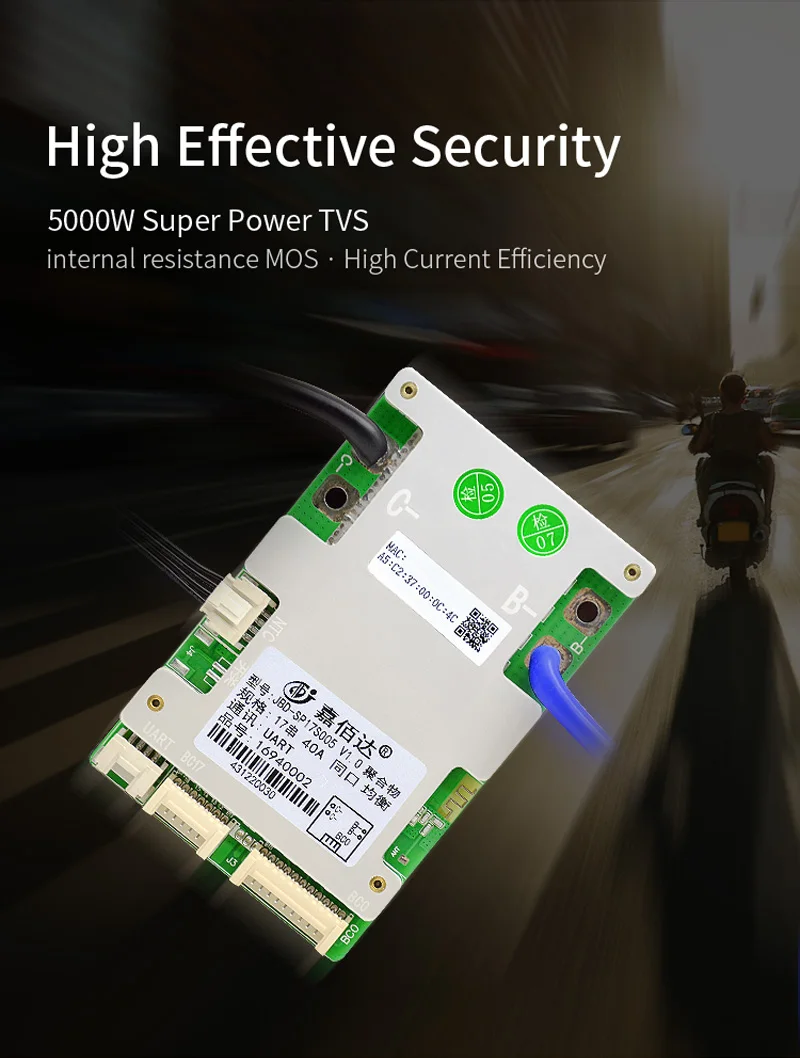

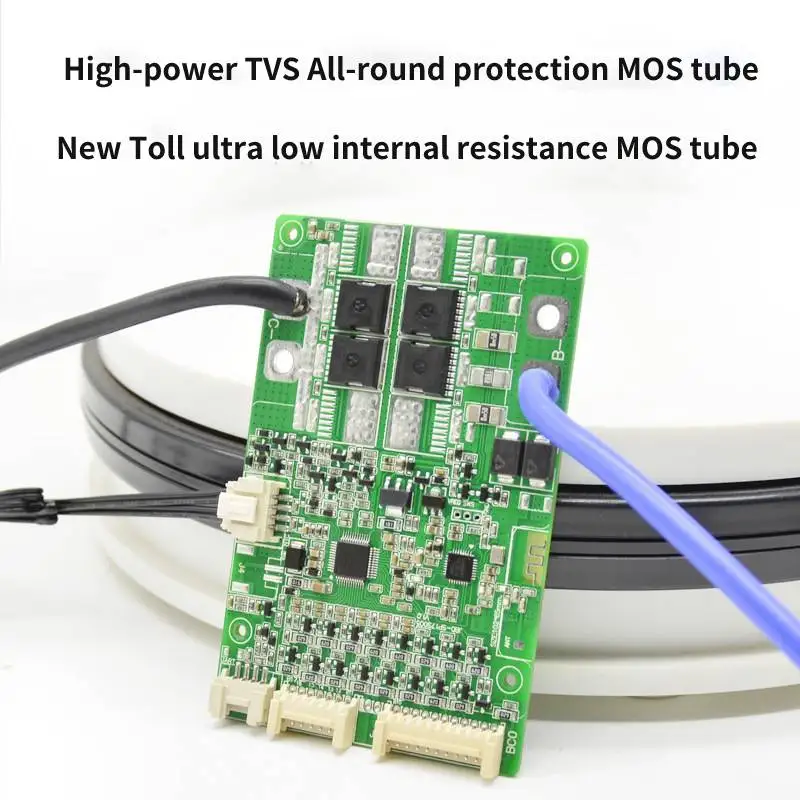

JBD Smart BMS-SP17S005 is a software protection board scheme specially designed

for 10～17series lithium battery packs.The whole system adopts concave convex front-end

acquisition chip
+ Bluetooth MCU scheme, and some parameters can be flexibly adjusted through

the uppercomputer according to the needs of customers.

Product Introduction

The Smart BMS Automatically Identify Lithium Battery Strings From 10S To 17S.

Size:102*65*12mm.

Applicable Battery Type: 3.2v Lifepo4 & 3.7v Li-ion Battery Pack.

Package Included:BMS with built-in BT*Balance Wires

Function Introduction

(1)BT-APP in Phone-xiaoxiangElectric App:http://www.jiabaida.com/appdown/index.html

Support Both IOS version and Android version, can monitor and change the parameters.

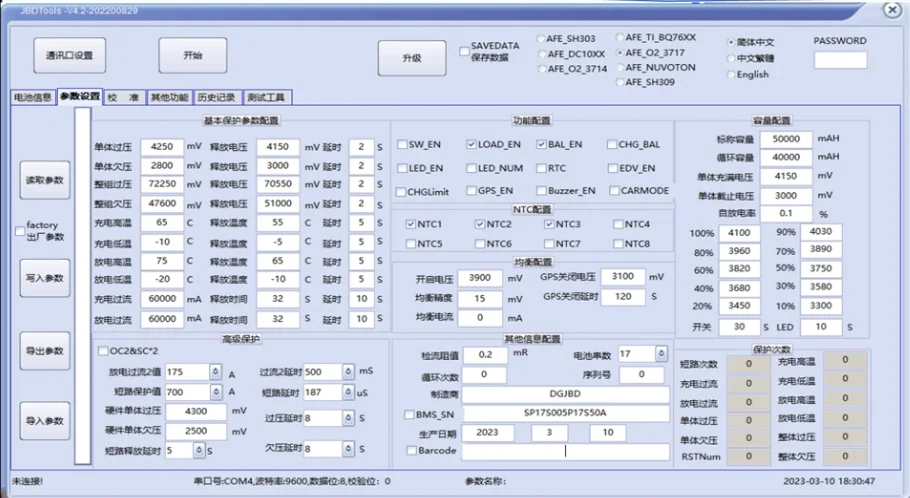

(2)PC Tool Software: https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip

(3)UART LCD Displayer-Can monitor parameters on LCD display.

Attention

(1)All smart bms support xiaoxiangElectric App IOS and Android version to convert li-ion and lifepo4 parameters.

(2)All smart bms has BT and UART function.

(3)Smart BMS accessories needs buy separately:https://www.aliexpress.com/item/3256804529002284.html

(4)APP Manual and BMS Specification:pls contact customer service.

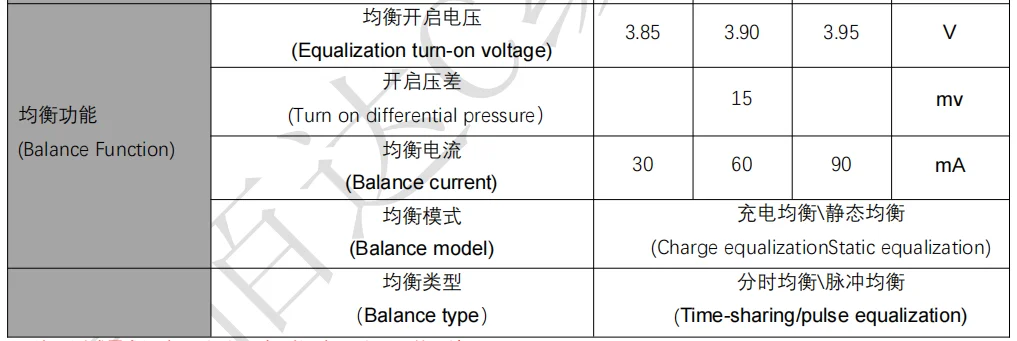

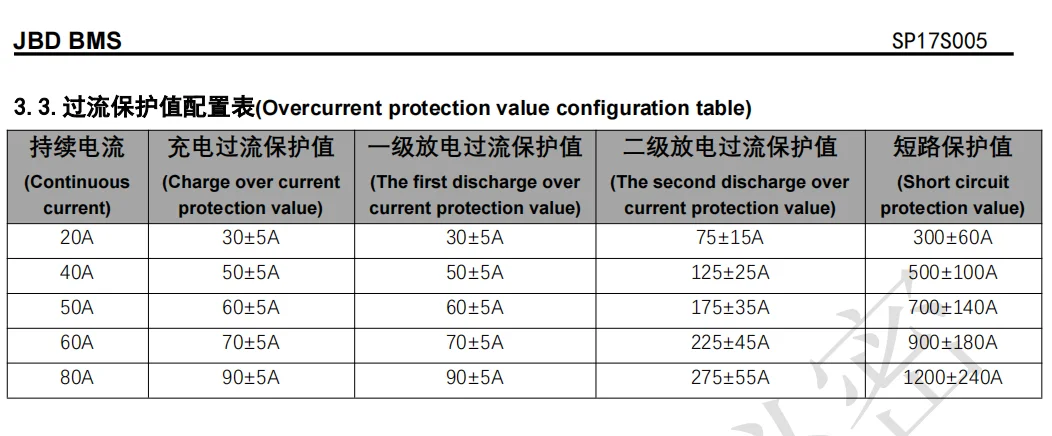

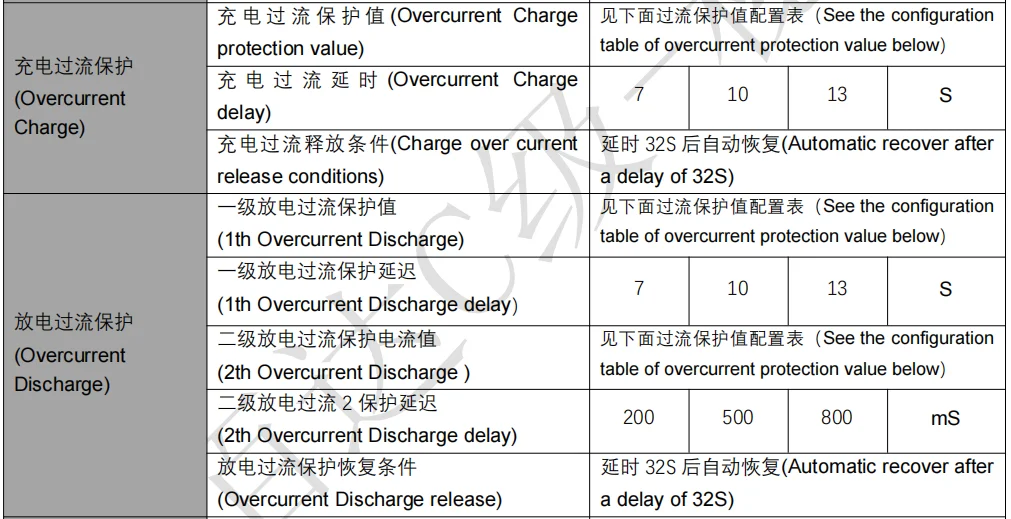

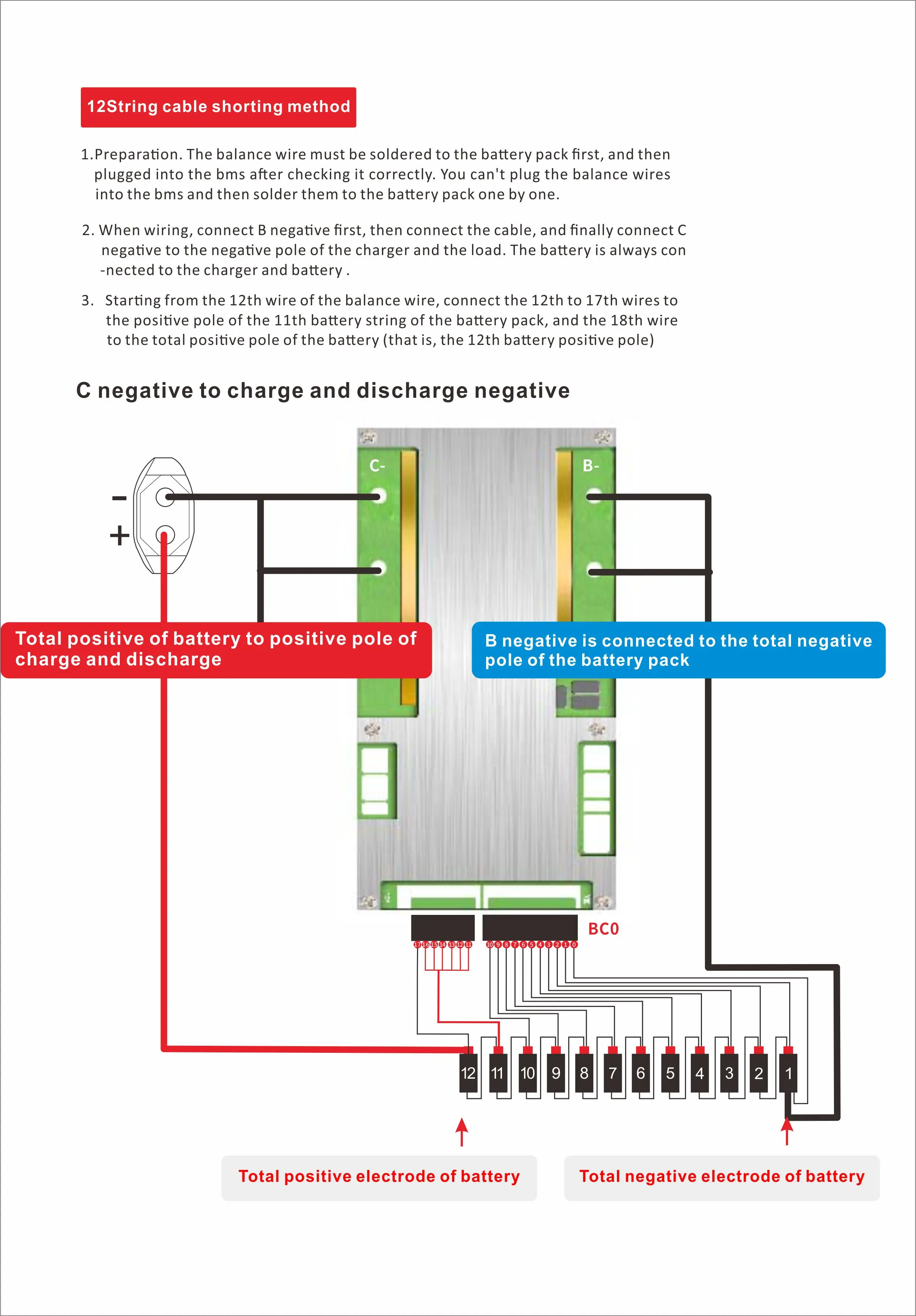

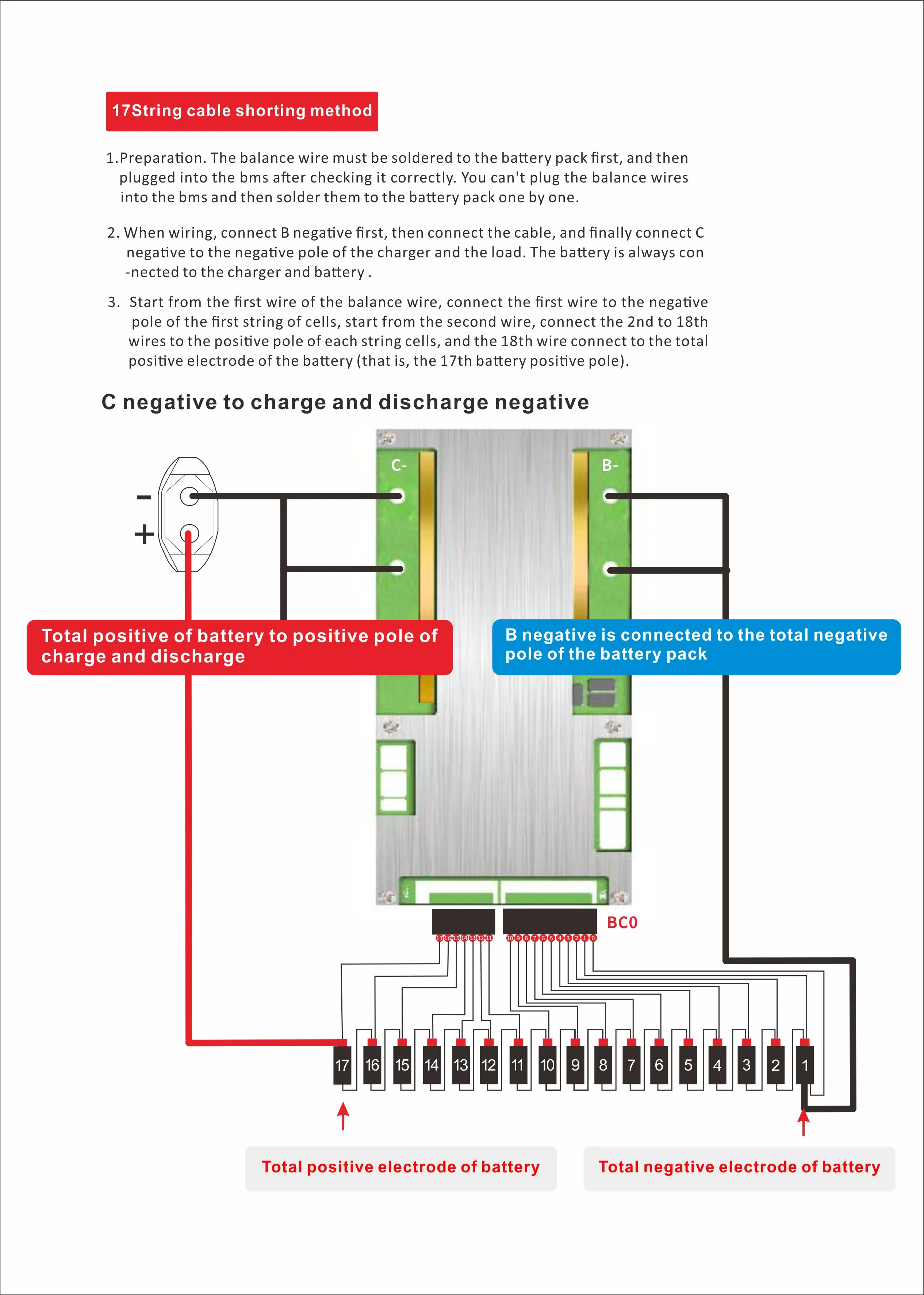

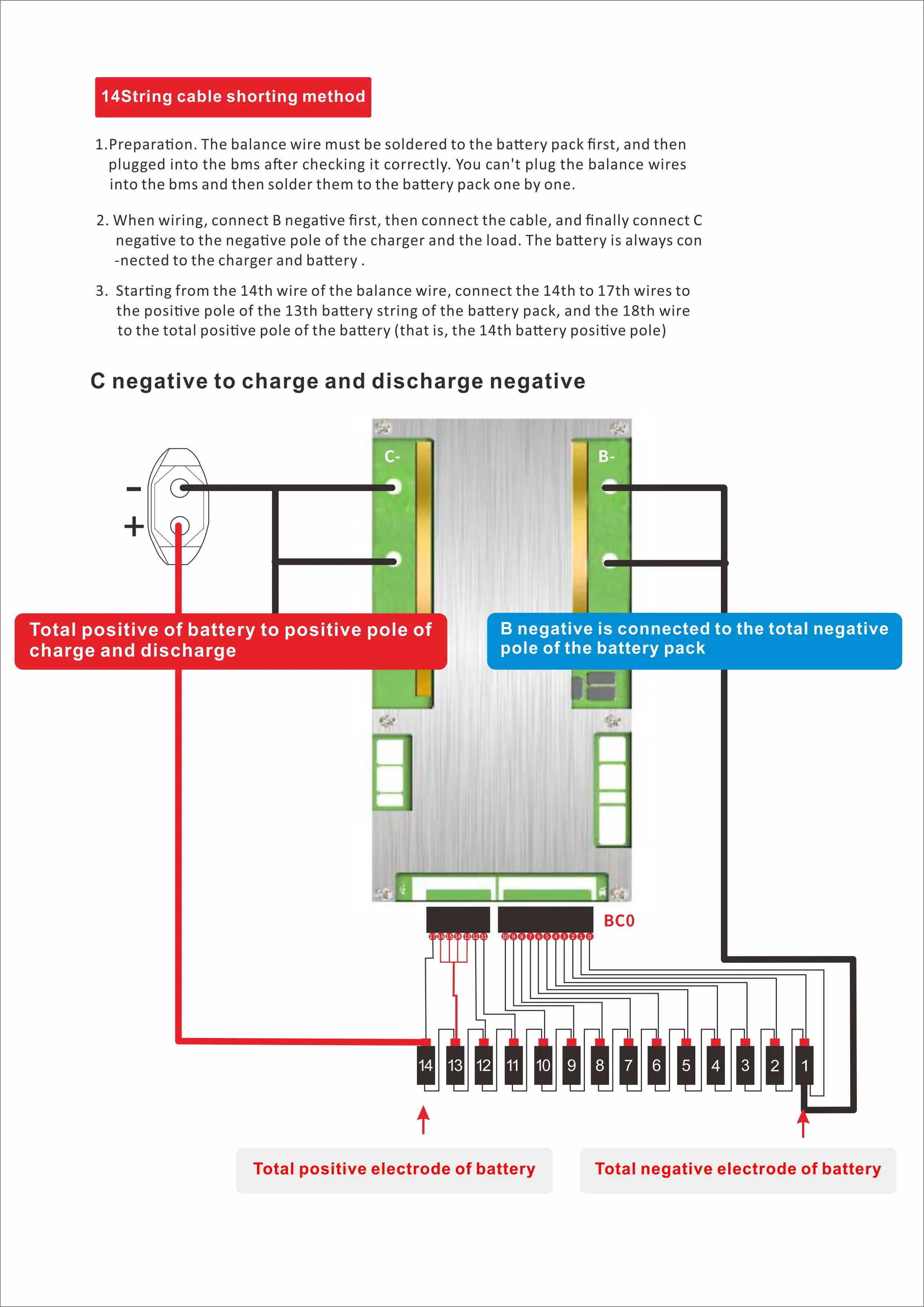

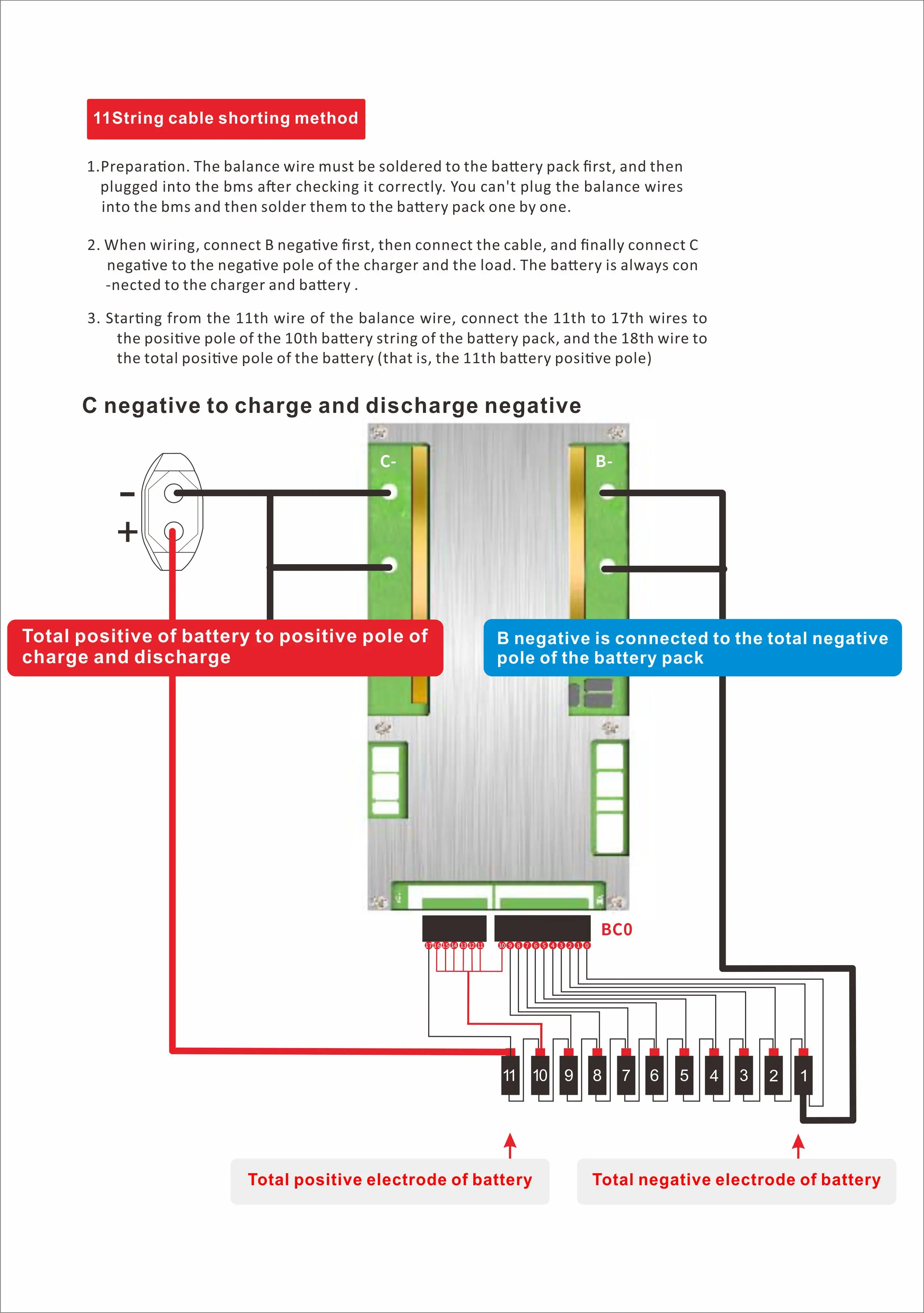

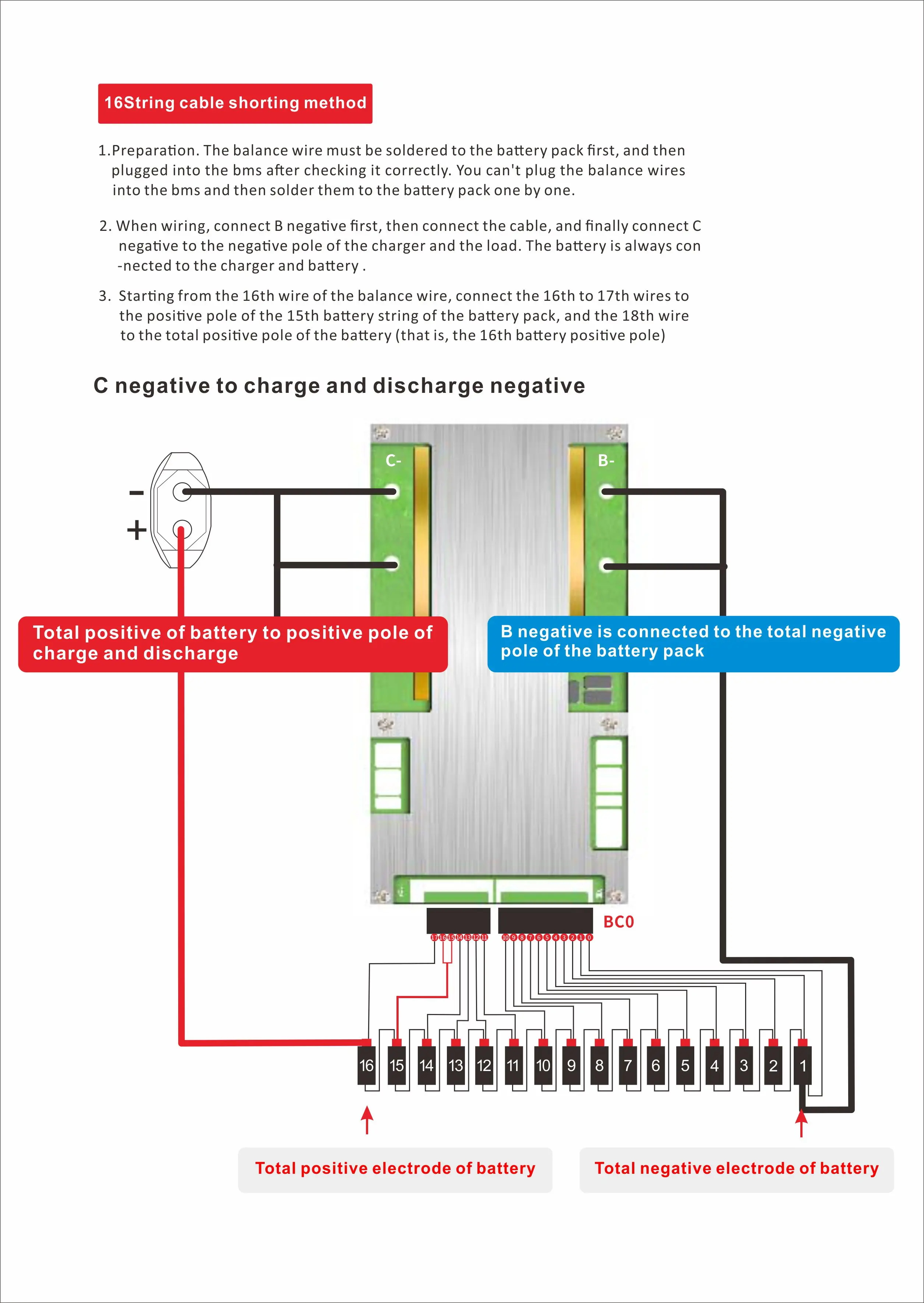

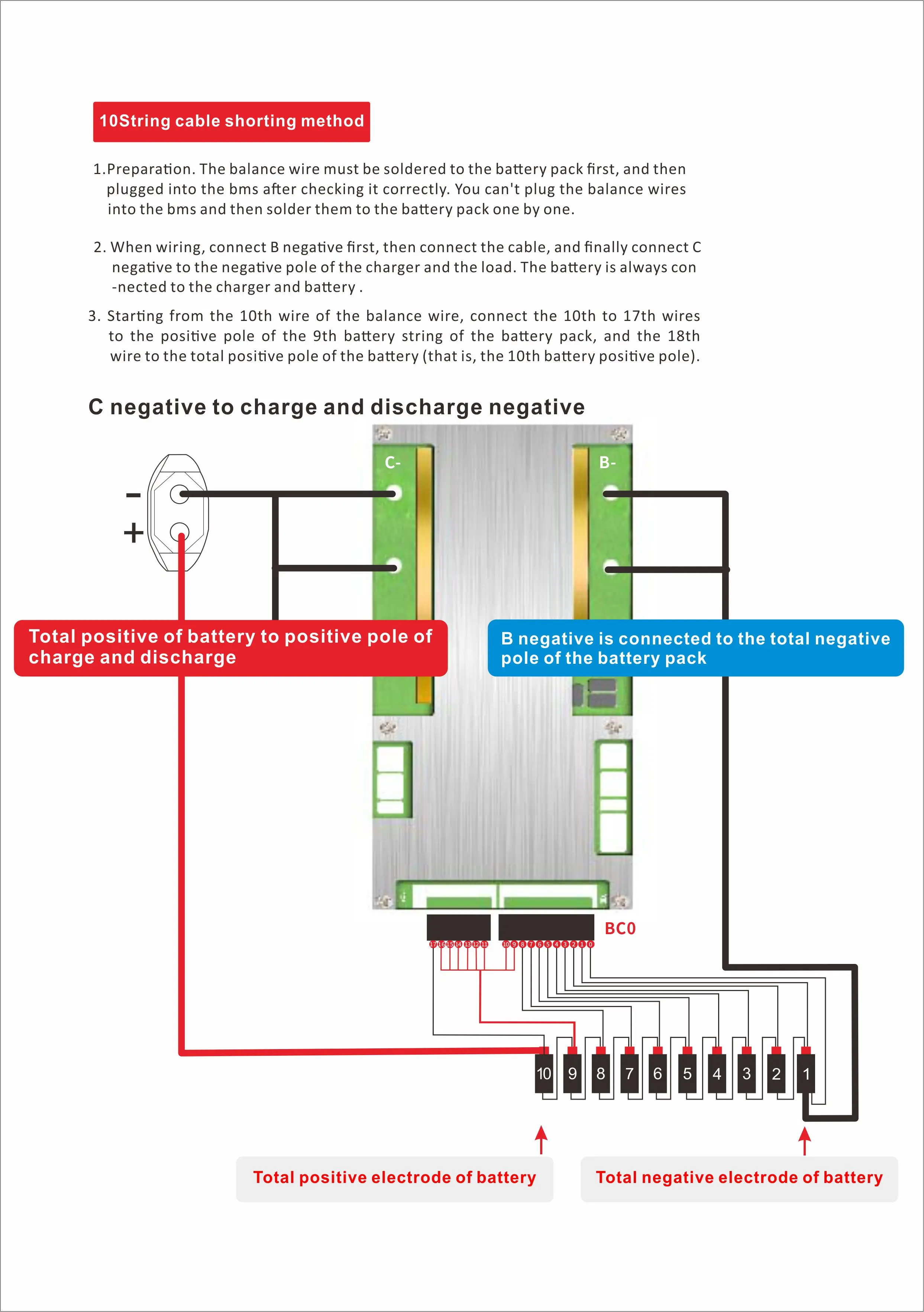

Smart BMS SP17S005 Wiring Diagram
